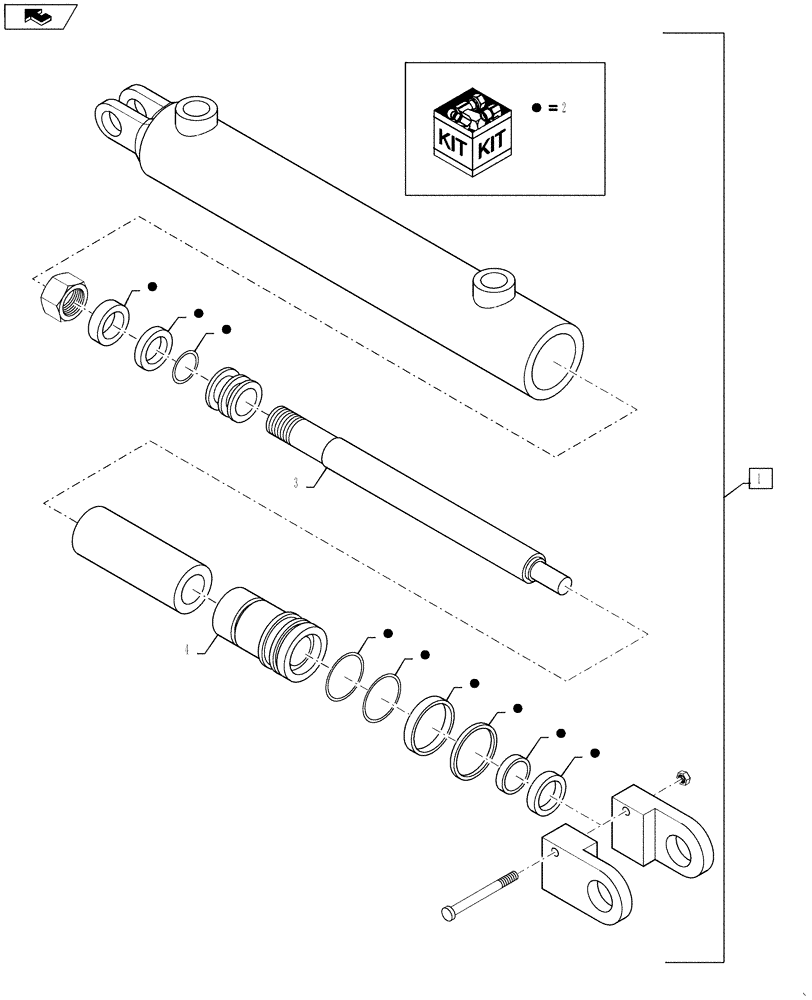

Запчасти Case IH 810 (35.911.01) - INNER BOOM FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

1

87266446

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 406.4mm Stroke

Inner Boom Fold, 2.5 X 16 X 1.25, Complete, Includes Ref 2 - 4

1шт.

1

87266446R

REMAN-HYD CYLINDER

810 FLEX-AIR APPLICATOR, Inner Boom Fold, 2.5 x 16 x 1.25, Complete (2/12-)

1шт.

1

87266446C

CORE-HYD CYLINDER

Return Number

1шт.

2

87266795

SEAL KIT

Kit, Inner Boom Fold Cylinder

1шт.

3

87268698

PISTON ROD

Cylinder

1шт.

4

87550911

GLAND

Head

1шт.
