(35.748.13) - MOTOR, 6" AUGER

Запчасти Case IH 810 (35.748.13) - MOTOR, 6" AUGER (35) - HYDRAULIC SYSTEMS

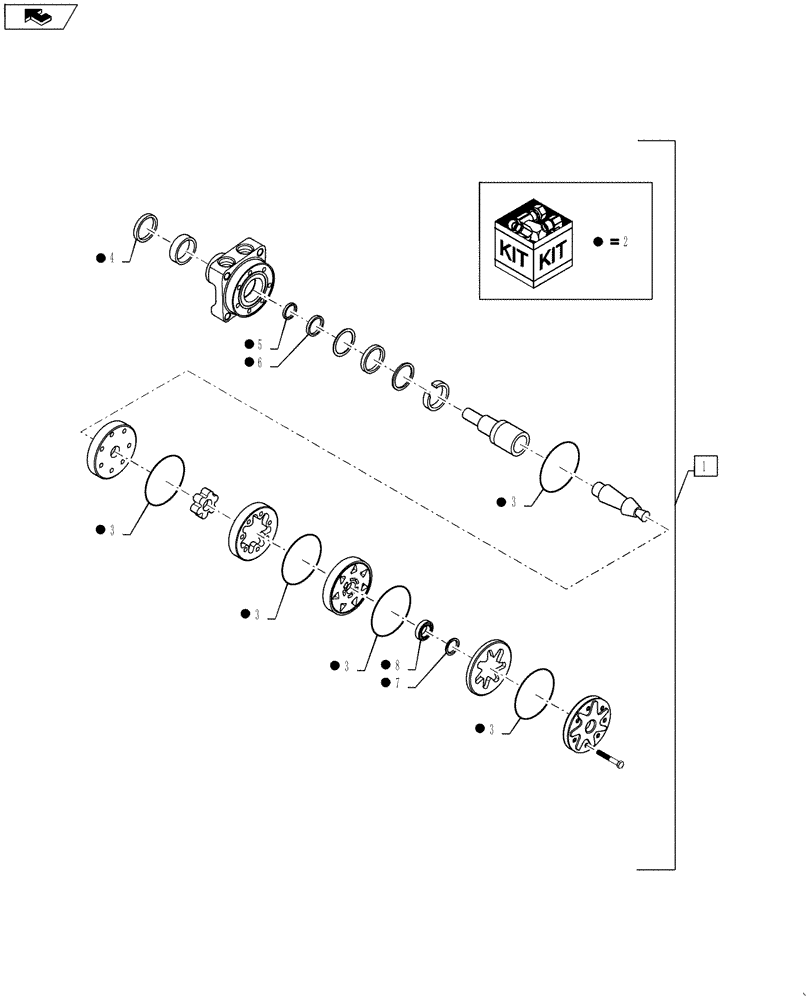

Схема запчастей Case IH 810 - (35.748.13) - MOTOR, 6" AUGER (35) - HYDRAULIC SYSTEMS
2
2
6
2
home
3
2
3
7
2
1
2
3
3
2
4
2
2
2
5
8
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306232

MOTOR

Auxiliary Auger, 6"

1шт.

2

BN67519

SEAL KIT

Hydraulic Motor, Includes Ref 3 Thru 8

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring, Included in Ref 2

5шт.

4

NSS

NOT SOLD SEPARAT

Dirt and Water Seal, Included in Ref 2

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft Seal, Included in Ref 2

1шт.

6

NSS

NOT SOLD SEPARAT

Back Up Seal, Included in Ref 2

1шт.

7

NSS

NOT SOLD SEPARAT

Inner Seal, Included in Ref 2

1шт.

8

NSS

NOT SOLD SEPARAT

Outer Seal, Included in Ref 2

1шт.
