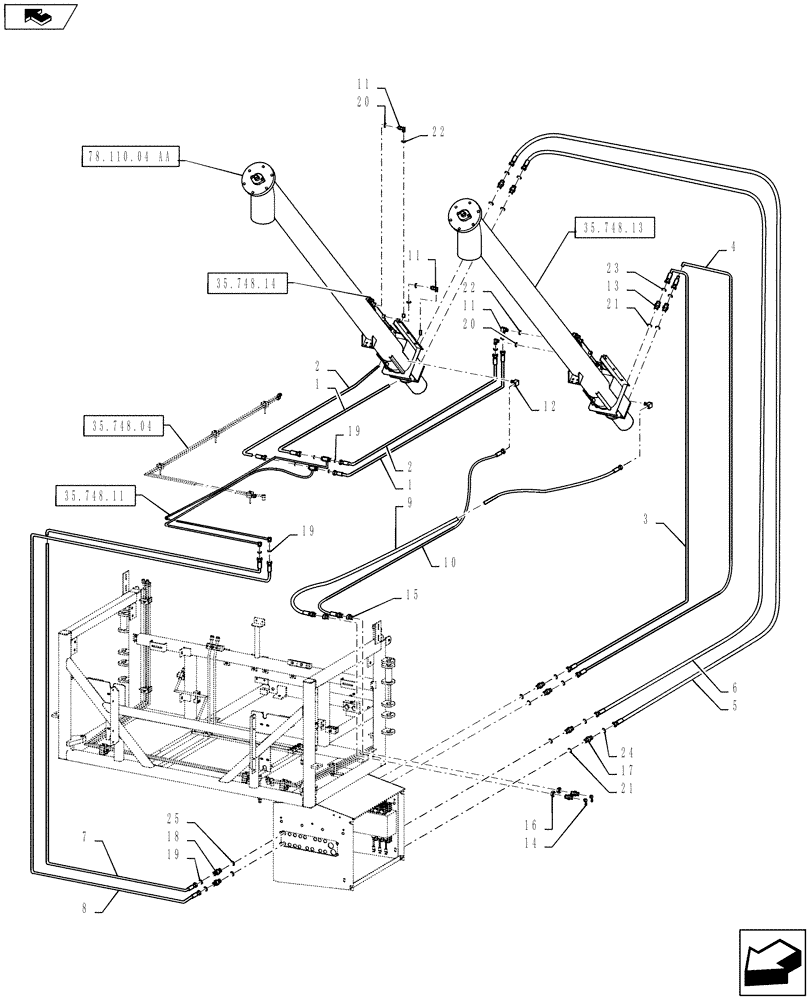

Запчасти Case IH 810 (35.748.12) - 6" AUGER HOSE AND FITTINGS, DOUBLE AND TRIPLE BIN (35) - HYDRAULIC SYSTEMS

1

BN309759

HOSE

9/16-18 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 22.5" Long, Auger Tubes to 6" Auger Gate Cylinder, Rod End

2шт.

2

BN309760

HOSE

9/16-18 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 27.5" Long, Auger Tubes to 6" Auger Gate Cylinder

2шт.

3

BN311828

HOSE,86.00"

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 86" Long, Main Valve to LH Auger Motor

1шт.

4

BN311829

HOSE,69.00"

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 69" Long, Main Valve to LH Auger Motor

1шт.

5

BN311830

HOSE

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 113" Long, Main Valve to RH Auger Motor

1шт.

6

BN309764

HOSE

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 128" Long, Main Valve to RH Auger Motor

1шт.

7

BN309765

HOSE

9/16-18 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 20" Long, Main Valve To Auger Gate Tubes

1шт.

8

BN309975

HOSE

9/16-18 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 22.5" Long, Main Valve To Auger Gate Tubes, Rod End

1шт.

9

BN311437

HOSE

Grease Line, 87"

1шт.

10

BN311438

HOSE

Grease Line, 69"

1шт.

11

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, Includes Ref 20 and 22

4шт.

12

BN35811

ADAPTER

45º, Grease Line, Style 2

2шт.

13

BN305057

FITTING

1-3/16 -12 ORFS x 7/8 -14 ORB, Includes Ref 21 and 23

4шт.

14

BN69951

CAP

Grease

2шт.

15

BN35805

ADAPTER

Grease, Straight 1/8 NPSM - NPTF

2шт.

16

BN53570

BHD LOCK NUT

2шт.

17

BN302655

FITTING

1-3/16-12 ORFS x 1-1/16-12 ORB, Includes Ref 21 and 24

4шт.

18

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 19 and 25

2шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

8шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

4шт.

21

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

8шт.

22

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

4шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

4шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

4шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.
