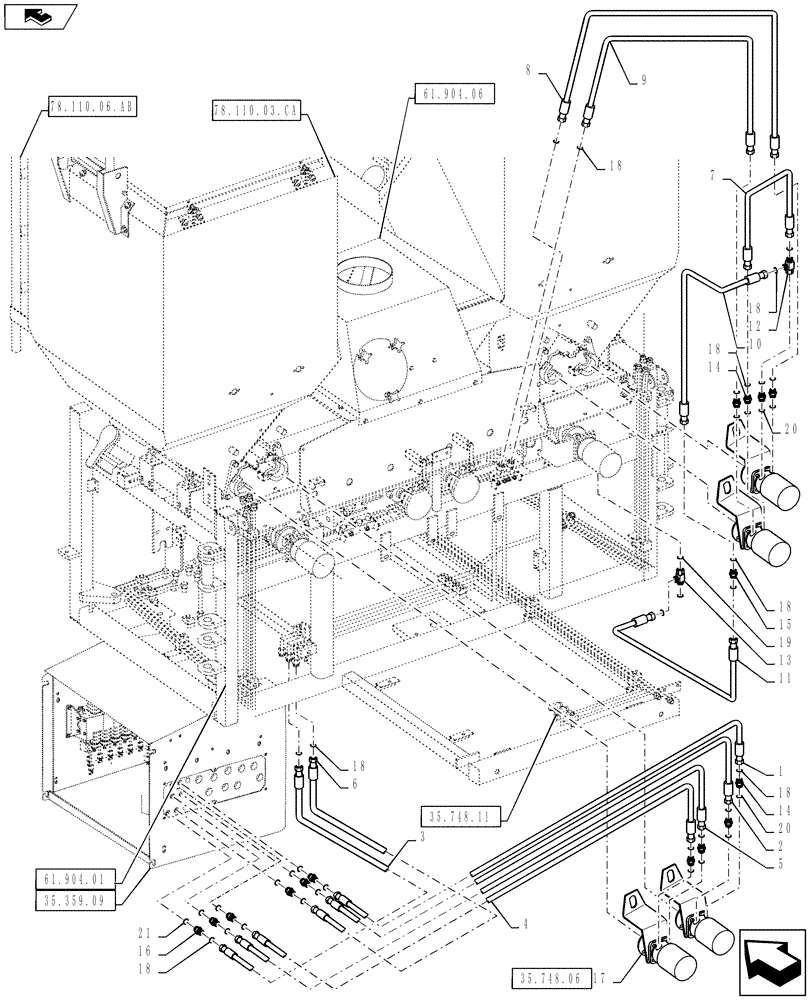

Запчасти Case IH 810 (35.748.10) - TRIPLE BIN HOSE AND FITTINGS (35) - HYDRAULIC SYSTEMS

1

BN312043

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 97" Long, Main Valve to LH Supplement Motor

1шт.

2

BN312044

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 115" Long, LH Supplement Motor to Main Valve

1шт.

3

BN312045

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 46" Long, Main Valve to Co-Ap Tube

1шт.

4

BN309740

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 100" Long, Main Valve to LH Co-Ap Motor

1шт.

5

BN312046

HOSE,123.00"

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 123" Long, LH Co-Ap Motor to Main Valve

1шт.

6

BN309742

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 43.5" Long, Main Valve to Supplemental Tube

1шт.

7

BN309743

HOSE,12.7mm ID x 533.4mm L

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel x 1/2" ID x 21" Long, RH Supplemental Motor to RH Co-Ap Motor

1шт.

8

BN309744

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 53" Long, Co-Ap Tube to RH Co-Ap Motor

1шт.

9

BN309745

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel x 1/2" ID x 41" Long, Supplemental Tube to RH Supplemental Motor

1шт.

10

87516546

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 9" Long, RH Co-Ap Motor to Inline Check

1шт.

11

87521320

HOSE,228.60 mm

13/16-16 Female ORFS Swivel x 1-3/16-16 Female ORFS Swivel Elbow x 1/2" ID x 9" Long, Inline Check to RH Conveyor Motor

1шт.

12

BN302436

TEE

13/16 -16 ORFS x 13/16 -16 ORFS Swivel, Includes Ref 18

1шт.

13

BN302438

FITTING

1-3/16"-16 ORFS x 1-3/16"-16 ORFS x 1-3/16"-16 ORB, Includes Ref 19

1шт.

14

BN302651

FITTING

13/16-16 ORFS x 7/8-14 ORB, Includes Ref 18 and 20

8шт.

15

129493A1

FITTING

Inline Check Valve, 13/16"-16 ORFS x 13/16"-16 ORFS, Includes Ref 18

1шт.

16

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref 18 and 21

6шт.

17

BN65718

HYDRAULIC MOTOR

Co-Ap Bin

4шт.

See Fig 35.748.06 For Service Parts

1шт.

18

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

16шт.

19

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

11шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

8шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

6шт.
