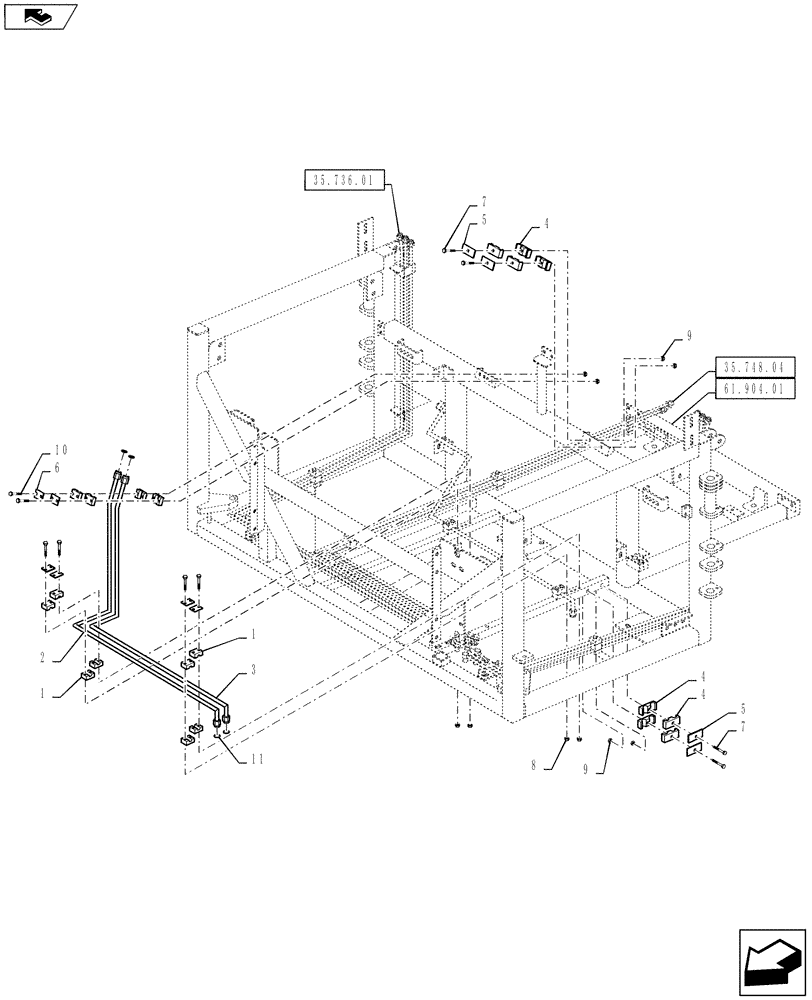

Запчасти Case IH 810 (35.748.09) - TRIPLE BIN HYDRAULIC TUBES (35) - HYDRAULIC SYSTEMS

1

BN29783

CLAMP

Single, 1/2" Tube

6шт.

2

BN306982

TUBE

Co-Ap, RH

1шт.

3

BN306983

TUBE

Supplemental, RH

1шт.

4

BN307913

CLAMP

Dual, 1/2 Pipe

4шт.

5

BN309484

PLATE

Top, Dual, Size 3

4шт.

6

BN309485

PLATE

Top, Single, Size 2

6шт.

7

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

4шт.

8

BN55359

LOCK NUT,1/4"-20, SS

12шт.

9

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

10

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

12шт.

11

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

4шт.
