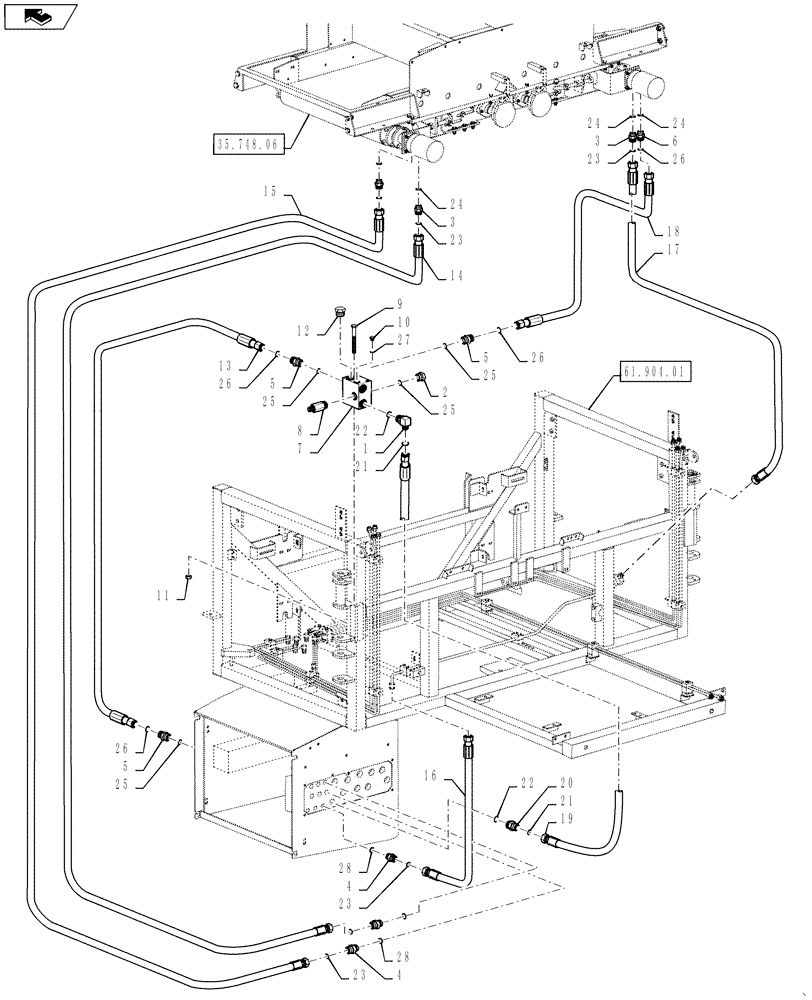

Запчасти Case IH 810 (35.748.05) - CONVEYOR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

BN302574

ELBOW

1-7/16-12 ORFS x 1-5/16-12 ORB, Includes Ref 21 and 22

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Includes Ref 25

1шт.

3

BN302651

FITTING

13/16-16 ORFS x 7/8-14 ORB, Includes Ref 23 and 24

3шт.

4

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref 23 and 28

3шт.

5

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 25 and 26

3шт.

6

BN305057

FITTING

1-3/16 -12 ORFS x 7/8 -14 ORB, Includes Ref 24 and 26

1шт.

7

BN306910

MANIFOLD

Return

1шт.

8

87270606

VALVE PRESSURE RELIE

Relief

1шт.

9

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

10

BN446048

PLUG

9/16" -18 ORB, Includes Ref 27

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

BN60479

PLUG

1-5/16" -12 ORB, Includes Ref 22

1шт.

13

87267716

HOSE

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 48" Long, Return Manifold To Main Valve

1шт.

14

BN313972

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 52" Long, Main Valve To Conveyor Motor

1шт.

15

BN309820

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 68" Long, Main Valve To Conveyor Motor

1шт.

16

BN309866

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 45" Long, Main Valve To Conveyor Tube

1шт.

17

BN309822

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 18-1/4" Long, Tube To Conveyor Motor

1шт.

18

87269804

HOSE,61 mm

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 61" Long, Conveyor Motor to Return Manifold

1шт.

19

BN309824

HOSE

1-7/16-12 Female ORFS Swivel x 1-7/16-12 Female ORFS Swivel Elbow x 1" ID x 48-1/2" Long, Return Manifold To Main Valve

1шт.

20

BN57223

FITTING

1-7/16"-12 ORFS x 1-5/16"-12 ORB, Includes Ref 21 and 22

1шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

2шт.

22

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

3шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

6шт.

24

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

4шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

4шт.

26

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

1шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

3шт.
