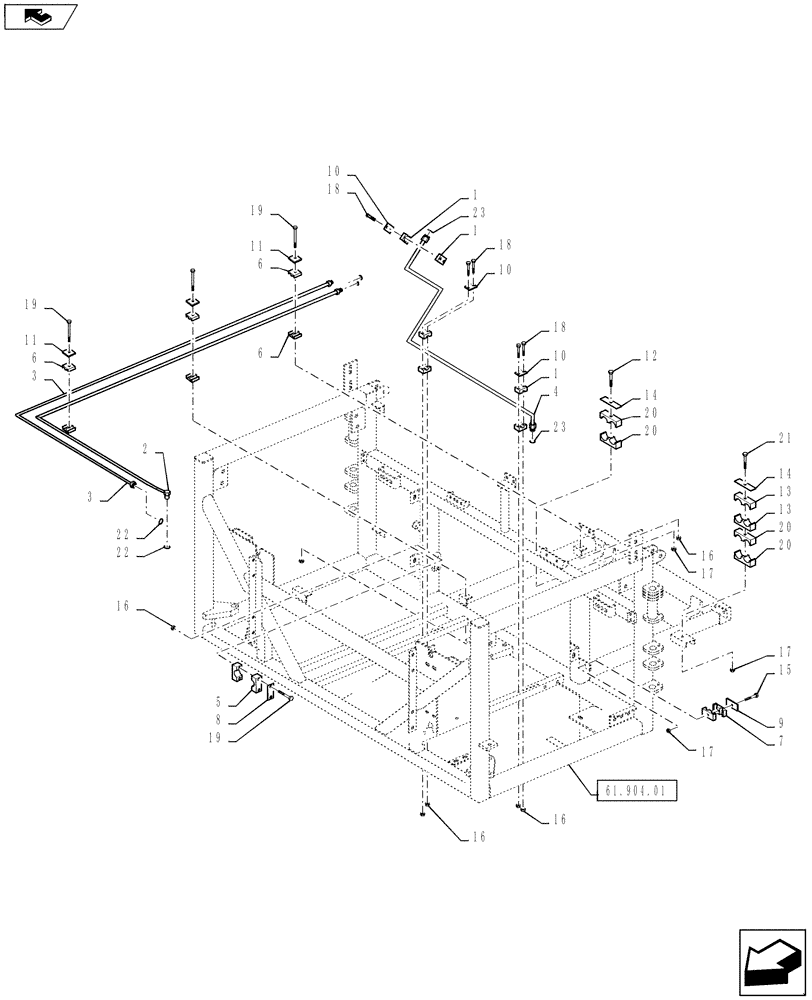

Запчасти Case IH 810 (35.748.04) - CONVEYOR AND MAIN AUGER HYDRAULIC TUBES (35) - HYDRAULIC SYSTEMS

1

BN29783

CLAMP

Single, 1/2" Tube

3шт.

2

BN306975

TUBE

Main Auger Gate

1шт.

3

BN306976

TUBE

Main Auger Gate, Rod End

1шт.

4

BN306981

TUBE

Conveyor, RH

1шт.

5

BN307082

CLAMP

Pair 1.25" Tube

1шт.

6

BN307911

CLAMP

Dual, 3/8 Tube

6шт.

7

BN307913

CLAMP

Dual, 1/2 Pipe

1шт.

8

BN309483

PLATE

Clamp Top, Single Clamp

1шт.

9

BN309484

PLATE

Top, Dual, Size 3

1шт.

10

BN309485

PLATE

Top, Single, Size 2

3шт.

11

BN309486

PLATE

Top, Dual, Size 1

3шт.

12

BN309848

SCREW,Hex, 5/16" - 18 x 3", SST

2шт.

13

BN309849

CLAMP

Dual, 1.25 Tube

2шт.

14

BN309850

PLATE

Dual, Size 5

2шт.

15

BN50241

BOLT,5/16"-18 X 2-1/4", Stainless Steel

1шт.

16

BN55359

LOCK NUT,1/4"-20, SS

11шт.

17

BN55361

NUT,5/16"-18, Nylon, Stainless

3шт.

18

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

6шт.

19

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

5шт.

20

BN311570

CLAMP

Dual, 1.50 Tube

2шт.

21

BN309845

SCREW,Hex, 5/16" - 18 x 5", SST

1шт.

22

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

4шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

2шт.
