(35.748.02) - MOTOR, 8" AUGER

Запчасти Case IH 810 (35.748.02) - MOTOR, 8" AUGER (35) - HYDRAULIC SYSTEMS

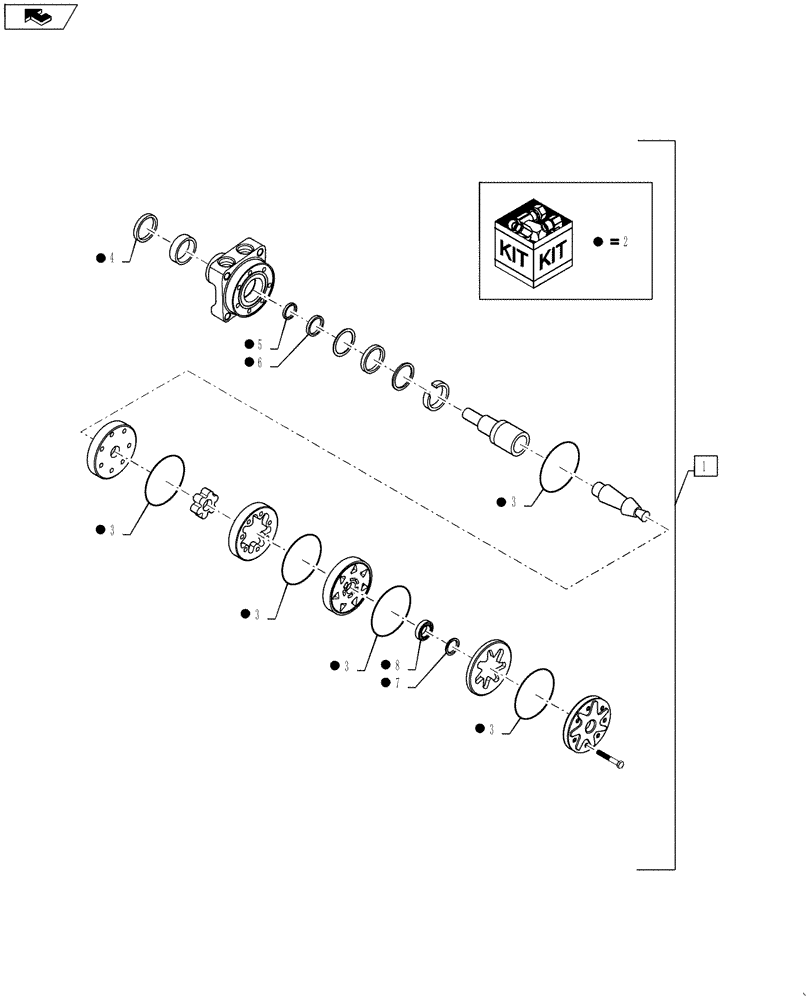

Схема запчастей Case IH 810 - (35.748.02) - MOTOR, 8" AUGER (35) - HYDRAULIC SYSTEMS
1
3
3
7
2
2
2
2
5
2
2
2
3
6
2
3
2
4
2
3
2
2
home
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306957

HYDRAULIC MOTOR

Main Auger, 8"

1шт.

2

BN67519

SEAL KIT

Hydraulic Motor, Includes Ref 3 Thru 8

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring, Included in Ref 2

5шт.

4

NSS

NOT SOLD SEPARAT

Dirt and Water Seal, Included in Ref 2

1шт.

5

NSS

NOT SOLD SEPARAT

Shaft Seal, Included in Ref 2

1шт.

6

NSS

NOT SOLD SEPARAT

Back Up Seal, Included in Ref 2

1шт.

7

NSS

NOT SOLD SEPARAT

Inner Seal, Included in Ref 2

1шт.

8

NSS

NOT SOLD SEPARAT

Outer Seal, Included in Ref 2

1шт.
