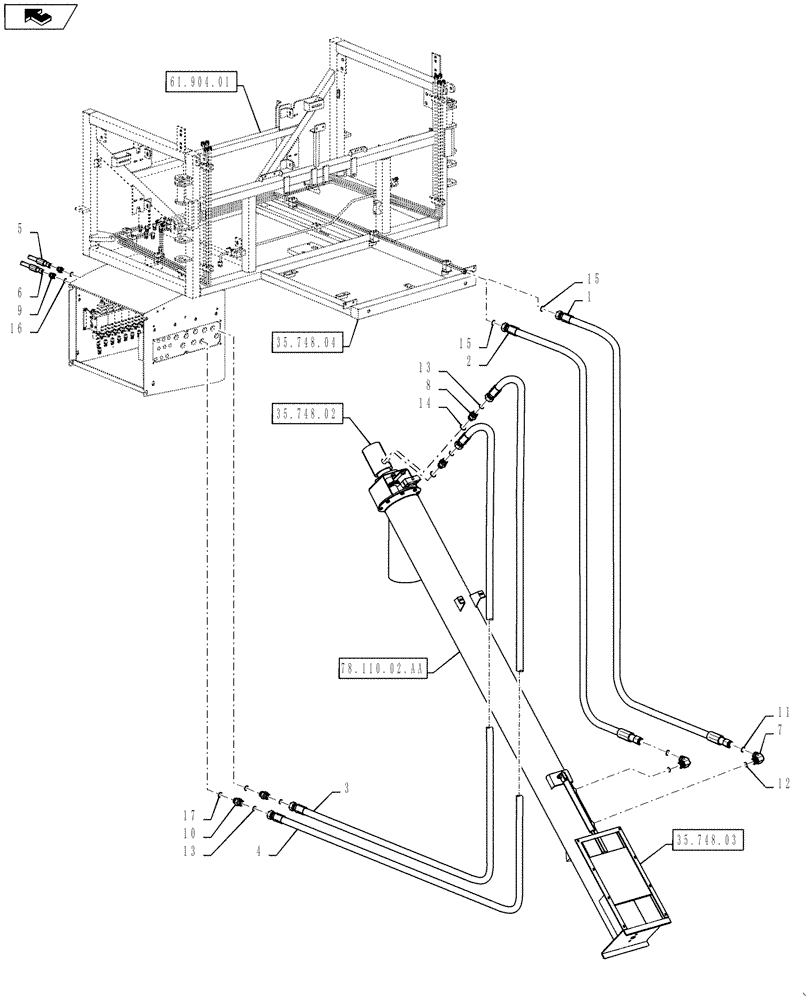

Запчасти Case IH 810 (35.748.01) - MAIN AUGER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

BN309825

HOSE

11/16-16 Female ORFS Swivel x 9/16-18 Female ORFS Swivel x 1/4" ID x 27.5" Long, Tube to Auger Gate Cylinder, Rod End

1шт.

2

BN309826

HOSE

11/16-16 Female ORFS Swivel x 9/16-18 Female ORFS Swivel x 1/4" ID x 39" Long, Tube to Auger Gate Cylinder, Base End

1шт.

3

87267717

HOSE

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 158" Long, Valve To Auger Motor, Pressure

1шт.

4

BN311834

HOSE

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 179" Long, Valve To Auger Motor, Return

1шт.

5

BN309982

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 23" Long, Valve to Auger Tube, Rod Side

1шт.

6

BN309988

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 24" Long, Valve to Auger Tube

1шт.

7

BN302547

90 ELBOW

9/16-18 ORFS x 7/16-20 ORB, Includes Ref 11 and 12

2шт.

8

BN305057

FITTING

1-3/16 -12 ORFS x 7/8 -14 ORB, Includes Ref 13 and 14

2шт.

9

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 15 and 16

2шт.

10

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 13 and 17

2шт.

11

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

2шт.

12

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.

13

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

14

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

2шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

6шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.
