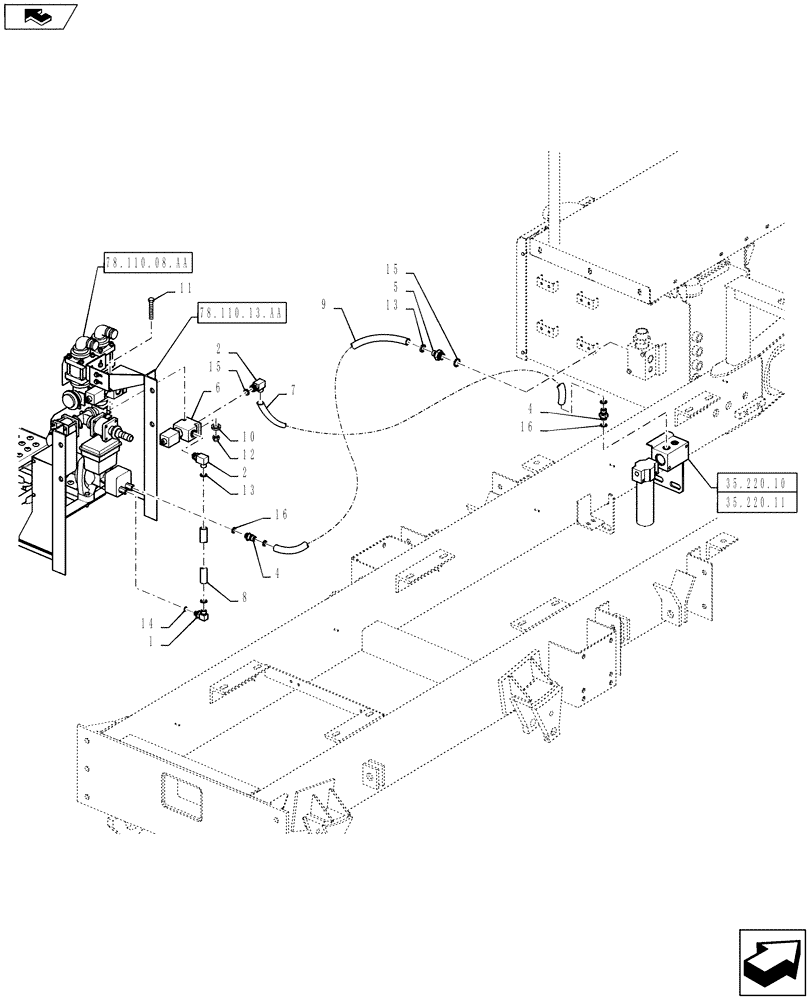

Запчасти Case IH 810 (35.747.01) - WET BOOM HYDRAULIC GROUP, 60/70 BOOMS (35) - HYDRAULIC SYSTEMS

1

BN302558

ELBOW

13/16-16 ORFS x 3/4-16 ORB, Includes Ref 13 and 14

1шт.

2

BN302560

FITTING

13/16-16 ORFS x 1-1/16-12 ORB, Includes Ref 13 and 15

2шт.

4

BN302651

FITTING

13/16-16 ORFS x 7/8-14 ORB, Includes Ref 13 and 16

2шт.

5

BN302652

FITTING

13/16" -16 OFRS x 1-1/16" -12 ORB, Includes Ref 13 and 15

1шт.

6

87266236

VALVE

Product, PWM

1шт.

See Fig 35.747.02 For Service Parts

1шт.

7

BN311741

HOSE

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 62" Long, Product Control Valve to Filter Manifold

1шт.

8

BN311742

HOSE,16.00"

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel x 1/2" ID x 16" Long, Product Pump to Product Control Valve

1шт.

9

BN311743

HOSE

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 97" Long, Product Pump to Chassis Return Manifold

1шт.

10

BN50142

WASHER,5/16", Stainless Steel

2шт.

11

BN52324

BOLT

5/16"-18 X 2-3/4", Stainless Steel

2шт.

12

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

6шт.

14

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.

15

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

3шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

2шт.
