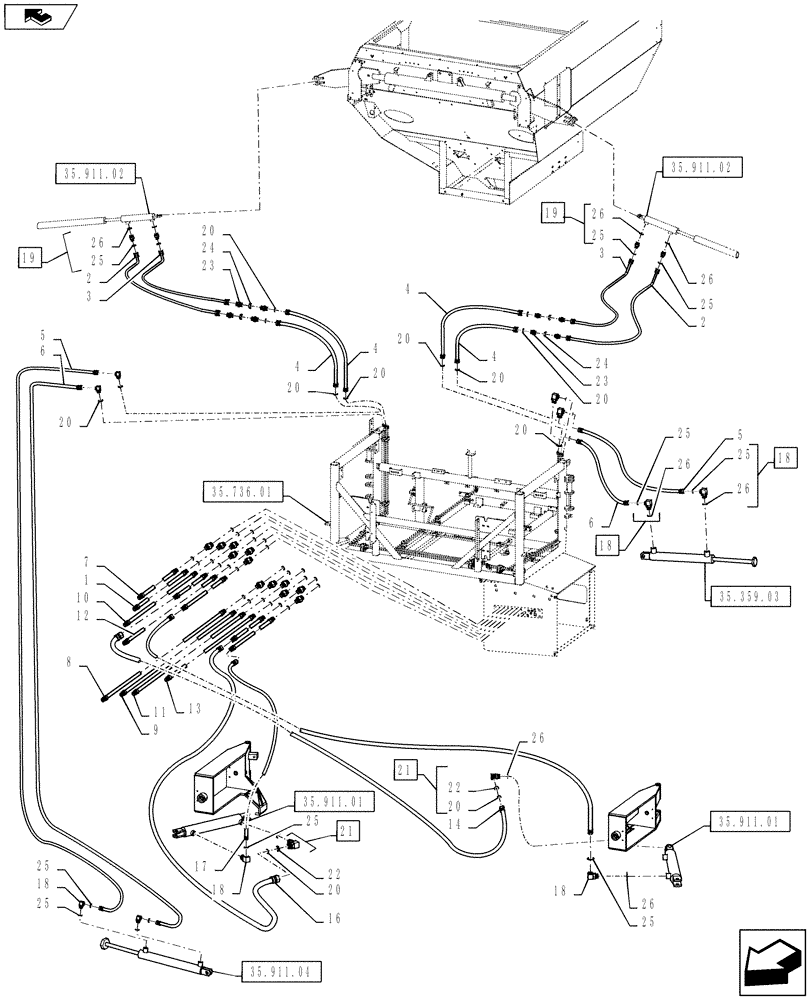

Запчасти Case IH 810 (35.736.03) - BOOM HYDRAULIC LINES, 70 BOOM (35) - HYDRAULIC SYSTEMS

1

BN309765

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 20" Long, Valve to LH Tip Fold Rod Side Tube

1шт.

2

BN314468

HOSE

11/16-16 Female ORFS Swivel x 9/16-18 Female ORFS Swivel x 1/4" ID x 24.5" Long, Bulkhead Fitting to Boom Level Cylinder, Rod Side

2шт.

3

BN314469

HOSE,23.00"

11/16-16 Female ORFS Swivel x 9/16-18 Female ORFS Swivel x 1/4" ID x 23" Long, Bulkhead Fitting to Boom Level Cylinder, Base Side

2шт.

4

BN314945

HOSE ASSY.

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel x 3/8" ID x 25" Long, Boom Level Tubes to Bulkhead Fittings

4шт.

5

BN316718

HOSE

11/16-16 Female ORFS Swivel Elbow x 9/16-18 Female ORFS Swivel x 1/4" ID x 188" Long, Boom Tip Fold Tube to Outer Boom Cylinder, Rod End

2шт.

6

BN316717

HOSE

11/16-16 Female ORFS Swivel Elbow x 9/16-18 Female ORFS Swivel x 1/4" ID x 169" Long, Boom Tip Fold Tube to Outer Boom Cylinder, Base End

2шт.

7

BN309976

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 23.5" Long, Valve to RH Tip Fold Tube, Rod Side

1шт.

8

BN309977

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 26" Long, Valve to RH Tip Fold Tube

1шт.

9

BN309979

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 28.5" Long, Valve to LH Tip Fold Tube

1шт.

10

BN309980

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 21" Long, Valve to RH Boom Level Tube, Rod Side

1шт.

11

BN309981

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 25.5" Long, Valve to RH Boom Level Tube

1шт.

12

BN309982

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 23" Long, Valve to LH Boom Level Tube, Rod Side

1шт.

13

BN309983

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 33.5" Long, Valve to LH Boom Level Tube

1шт.

14

86986294

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 100" Long, Valve to RH Boom Fold Cylinder, Rod Side

1шт.

15

BN309985

HOSE

11/16-16 Female ORFS Swivel Elbow x 9/16-16 Female ORFS Swivel Elbow x 1/4" ID x 95" Long, Valve to RH Boom Fold Cylinder

1шт.

16

86986369

HOSE

11/16-16 Female ORFS Swivel x 11/16-16 Female ORFS Swivel Elbow x 1/4" ID x 55" Long, Valve to LH Boom Fold Cylinder, Rod Side

1шт.

17

BN309987

HOSE

11/16-16 Female ORFS Swivel Elbow x 9/16-16 Female ORFS Swivel Elbow x 1/4" ID x 55" Long, Valve to LH Boom Fold Cylinde

1шт.

18

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

6шт.

19

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

4шт.

20

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

22шт.

21

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

22

BN313268

ORIFICE

.042, -6 Disk

2шт.

23

87657658

UNION

11/16"-16 ORFS x 11/16"-16 ORFS

4шт.

24

87657660

BHD LOCK NUT

11/16"-16

4шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

10шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

24шт.

27

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB

12шт.
