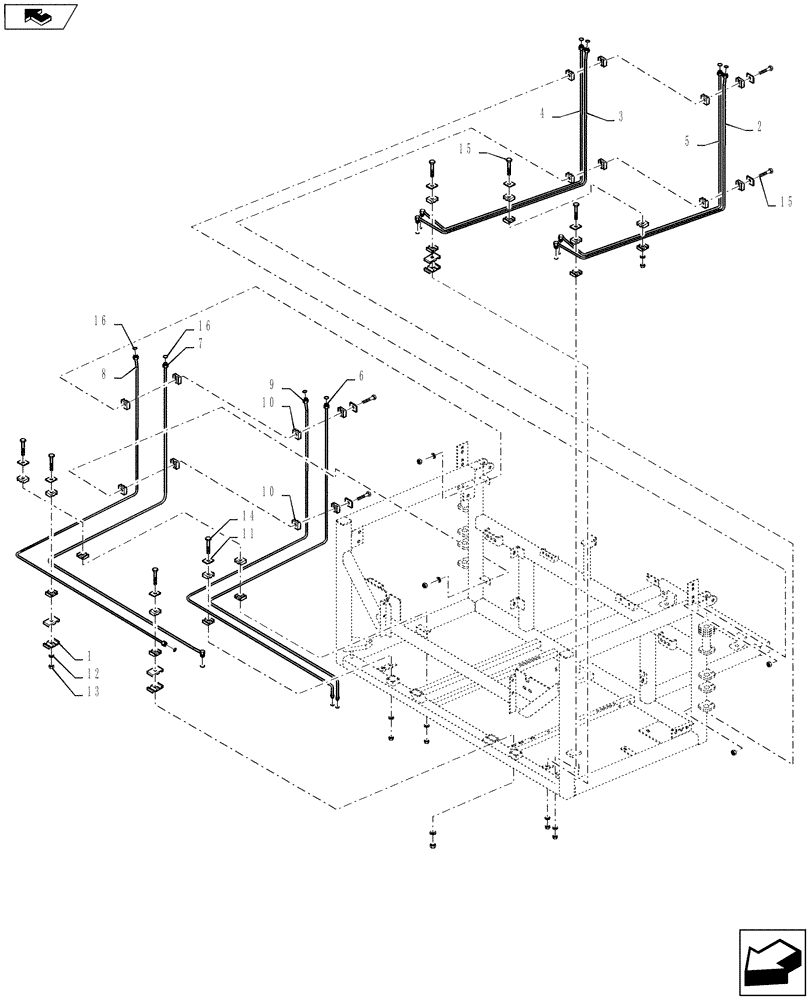

Запчасти Case IH 810 (35.736.01) - BOOM HYDRAULIC TUBES GROUP (35) - HYDRAULIC SYSTEMS

1

BN29779

CLAMP

Dual, 1/2" Tube

3шт.

2

BN306967

TUBE

Boom Level, LH, Rod End

1шт.

3

BN306968

TUBE

Boom Tip, LH, Rod End

1шт.

4

BN306969

TUBE

Boom Tip, LH

1шт.

5

BN306970

TUBE

Boom Level, LH

1шт.

6

BN306971

TUBE

Boom Level, RH

1шт.

7

BN306972

TUBE

Boom Tip, RH

1шт.

8

BN306973

TUBE

Boom Tip, RH, Rod End

1шт.

9

BN306974

TUBE

Boom Level, RH, Rod End

1шт.

10

BN307911

CLAMP

Dual, 3/8 Tube

19шт.

11

BN309486

PLATE

Top, Dual, Size 1

12шт.

12

BN50138

WASHER,1/4", SS

8шт.

13

BN55359

LOCK NUT,1/4"-20, SS

12шт.

14

BN55366

BOLT,1/4"-20 x 2.00", Stainless Steel

2шт.

15

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

10шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

16шт.
