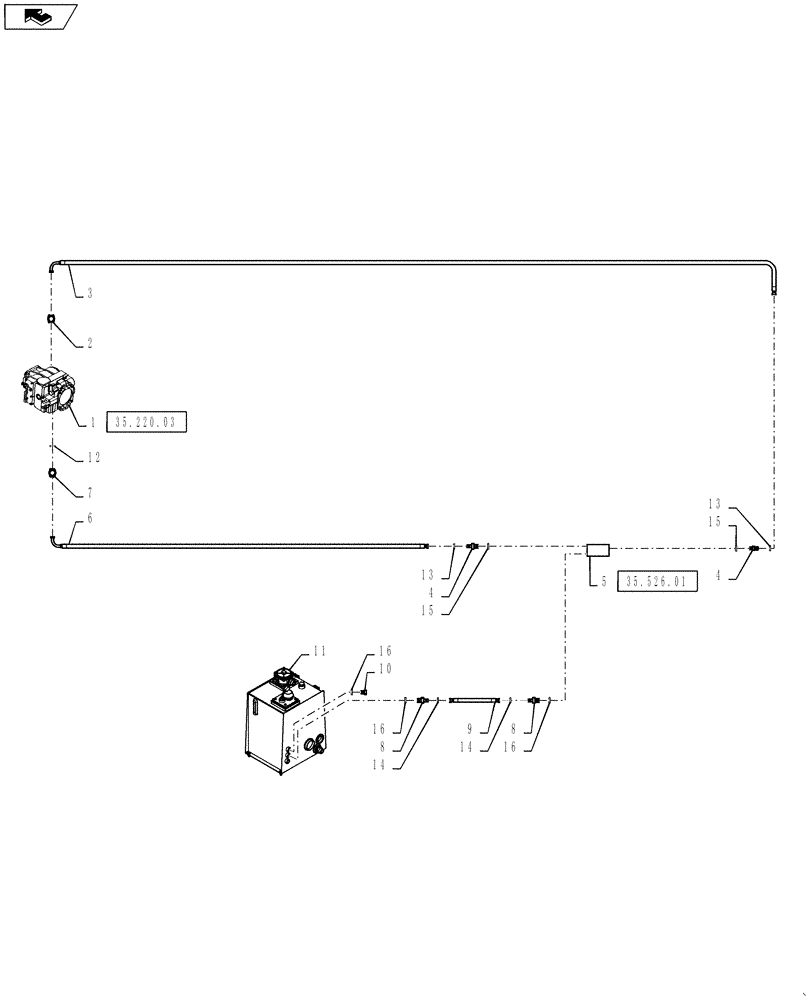

Запчасти Case IH 810 (35.526.03) - FAN LOOP HYDRAULICS, SUPPLY AND RETURN, 4 WHEELER (35) - HYDRAULIC SYSTEMS

1

BN309564

PUMP

75CC Hydrostat, 90 Series, 810 Drive Pump

1шт.

See Fig 35.220.03 For Service Parts

1шт.

2

BN302793

REPAIR KIT

Split Flange, 62-61

1шт.

3

87269795

HOSE

1-7/16" - 12 ORFS Swivel x Code 61 Flange Elbow x 1" ID x 105" Long, Hydrostatic Pump to Fan Loop Valve

1шт.

4

BN57223

FITTING

1-7/16" -12 ORFS x 1-5/16" -12 ORB, Includes Ref 13 and 15

2шт.

5

BN306909

MANIFOLD

Fan Loop Valve

1шт.

See Fig 35.526.01 For Service Parts

1шт.

6

87267310

HOSE,16.00 mm ID x 65 mm

1-7/16" - 12 ORFS Swivel x Code 62 Flange Elbow x 1" ID x 65" Long, Hydrostatic Pump to Fan Loop Valve

1шт.

7

BN52315

KIT

1" Split Flange For Code 62 Fittings, Contains 1 Oring, 2 Flange Halves, and 4 Socket Head Bolts

1шт.

8

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Inlcudes Ref 14 and 16

2шт.

9

87267309

HOSE

1-3/16"-12 ORFS Swivel x 1-3/16"-12 ORFS Swivel x 3/4" ID x 63" Long, Fan Loop Valve To Hydraulic Oil Tank

1шт.

10

BN54270

PLUG

1-1/16" -12 ORB, Includes Ref 16

1шт.

11

87270368

TANK

Hydraulic, 31 Gallon, Please See The Required Chassis Catalog For Parts Information

1шт.

12

BN52317

O-RING

Included in Ref 7

1шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

2шт.

14

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

2шт.

15

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

2шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

3шт.
