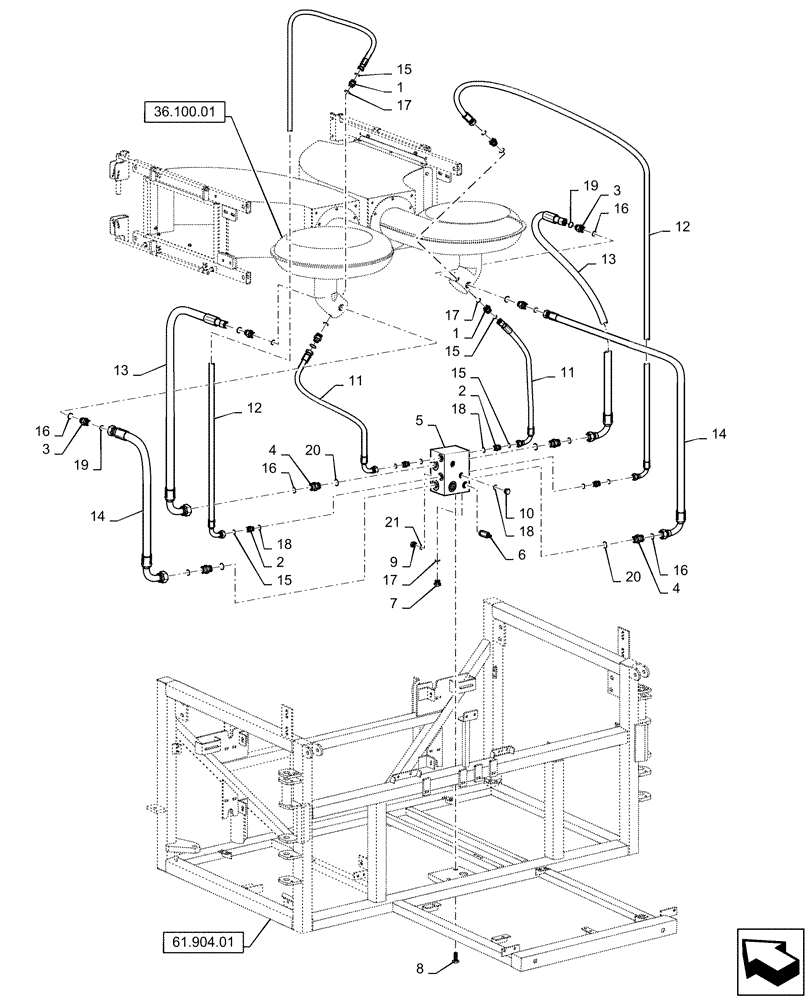

Запчасти Case IH 810 (35.526.01) - FAN LOOP HYDRAULIC GROUP (35) - HYDRAULIC SYSTEMS

1

BN302649

FITTING

13/16-16 ORFS x 9/16-18 ORB, Includes Ref 15 and 17

4шт.

2

BN302651

FITTING

13/16-16 ORFS x 7/8-14 ORB, Includes Ref 15 and 18

4шт.

3

BN302655

FITTING

1-3/16-12 ORFS x 1-1/16-12 ORB, Includes Ref 16 and 19

4шт.

4

BN57233

FITTING

1-3/16-12 ORFS x 1-5/16-12 ORB, Includes Ref 16 and 20

4шт.

5

BN306909

MANIFOLD

Fan Loop Valve

1шт.

6

87269996

VALVE PRESSURE RELIE

1шт.

7

BN446048

PLUG

9/16" -18 ORB, Includes Ref 17

1шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

9

BN53991

PLUG

7/16-20 ORB, Includes Ref 21

2шт.

10

86625138

PLUG,7/18" - 14

Includes Ref 18

1шт.

11

BN309829

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 22" Long, Fan Loop Valve to Fan Motor

2шт.

12

BN309830

HOSE

13/16-16 Female ORFS Swivel x 13/16-16 Female ORFS Swivel Elbow x 1/2" ID x 19" Long, Fan Loop Valve to Fan Motor

2шт.

13

BN312047

HOSE,41.00"

1-3/16-12 Female ORFS Swivel x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 41" Long, Fan Loop Valve to Fan Motor

2шт.

14

87269792

HOSE

1-3/16-12 Female ORFS Swivel Elbow x 1-3/16-12 Female ORFS Swivel Elbow x 3/4" ID x 29" Long, Fan Loop Valve to Fan Motor

2шт.

15

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

8шт.

16

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

8шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

5шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

5шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

4шт.

20

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

4шт.

21

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.
