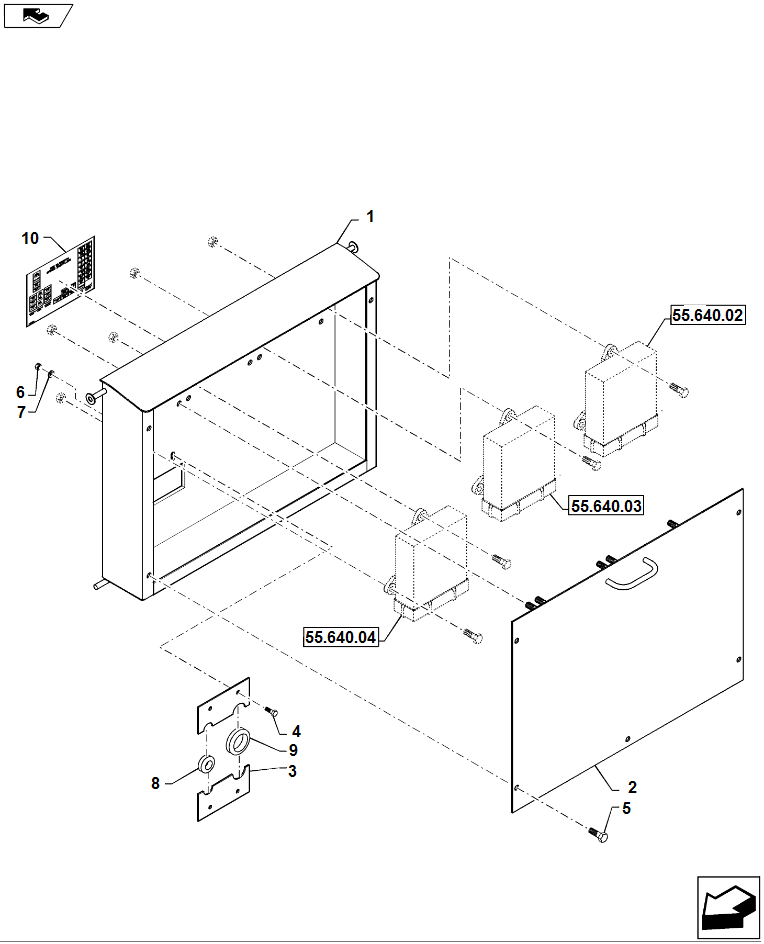

Запчасти Case IH 810 (35.359.14) - VALVE BOX DOOR ASSEMBLY, DOUBLE AND TRIPLE BIN (35) - HYDRAULIC SYSTEMS

1

87268842

DOOR PANEL

Valve Box Door

1шт.

2

87266734

COVER

Front

1шт.

3

87266738

PLATE

Wire Seal

2шт.

4

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

4шт.

5

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

5шт.

6

BN55359

LOCK NUT,1/4"-20, SS

4шт.

7

BN50138

WASHER,1/4", SS

2шт.

8

87266729

GROMMET

3/4" ID

1шт.

9

87266728

GROMMET

1-1/2", ID

1шт.

10

87270007

DECAL

Solenoid and Valve Configuration, Hydraulic Box

1шт.
