(35.359.13) - VALVE BOX DOOR, DOUBLE AND TRIPLE BIN

Запчасти Case IH 810 (35.359.13) - VALVE BOX DOOR, DOUBLE AND TRIPLE BIN (35) - HYDRAULIC SYSTEMS

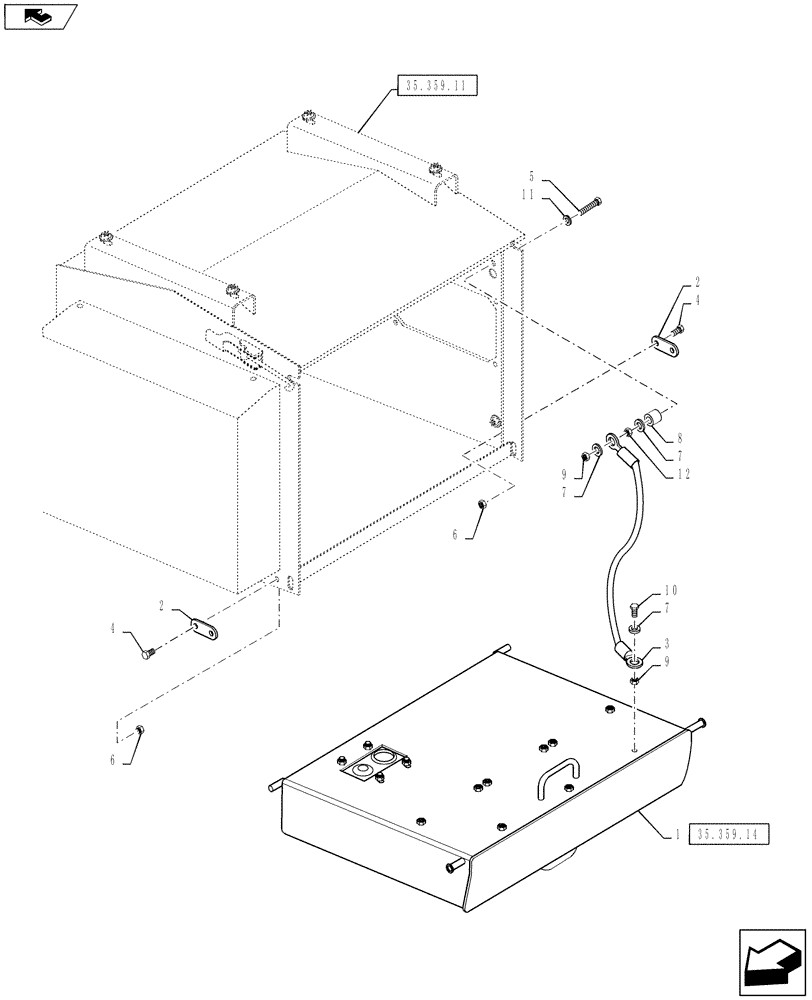

Схема запчастей Case IH 810 - (35.359.13) - VALVE BOX DOOR, DOUBLE AND TRIPLE BIN (35) - HYDRAULIC SYSTEMS
9
35.359.11
35.359.14
2
9
6
4
7
3
12
11
7
8
2
5
home
6
10
4
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268843

DOOR

Valve Box, Control Node Compartment, Double and Triple Bin

1шт.

See Fig 35.359.14 For Service Parts

1шт.

2

87268865

RETAINER COLLAR

Hinge Door

2шт.

3

87271165

CABLE,713mm L

Breakaway, 28"

1шт.

4

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

5

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

3/8-16 X 2-1/2", Stainless Steel

1шт.

6

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

7

BN23452

WASHER,13/32" x 1.25 " OD x 12 GA, SS

3шт.

8

87265700

BUSHING

Door Retainer

1шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

10

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

11

BN50146

WASHER,3/8", Stainless

1шт.

12

BN50064

NUT

3/8"-16, Stainless Steel

1шт.
