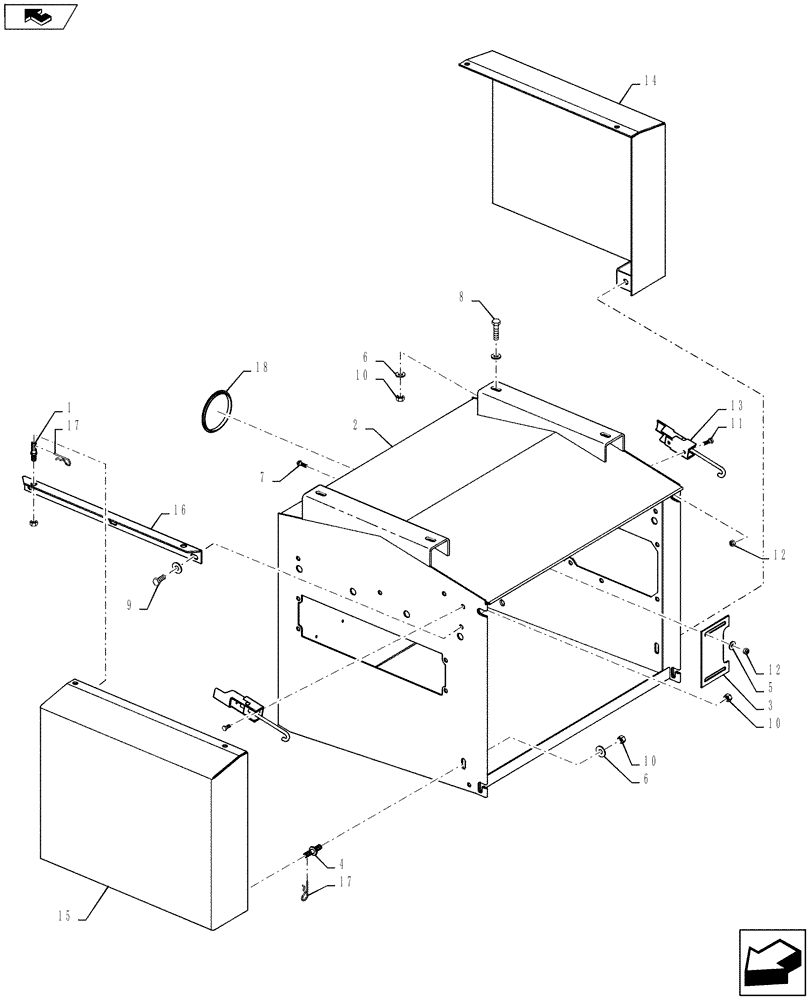

Запчасти Case IH 810 (35.359.11) - VALVE BOX ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

BN307047

PIN

3/8, With Shoulder

4шт.

2

84130864

BOX

Hydraulic Valve

1шт.

3

BN306268

COVER

Access, Valve Box

1шт.

4

BN310283

PIN

3/8, With 3/4 Shoulder

2шт.

5

BN50138

WASHER,1/4", SS

2шт.

6

BN50146

WASHER,3/8", Stainless

16шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

8

BN50258

BOLT,3/8"-16 X 1.25", Stainless

4шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

5шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

16шт.

11

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

4шт.

12

BN55359

LOCK NUT,1/4"-20, SS

6шт.

13

BN65808

LATCH

Adjustable

2шт.

14

BN67852

COVER

RH Side

1шт.

15

BN67855

COVER

LH Side

1шт.

16

BN67857

ANGLE

Mount, Side Cover

2шт.

17

BN71007

CLIP,3/16" Hairpin

Hairpin, 3/16" #8

6шт.

18

87265990

PLUG

Button, Flush Type

1шт.
