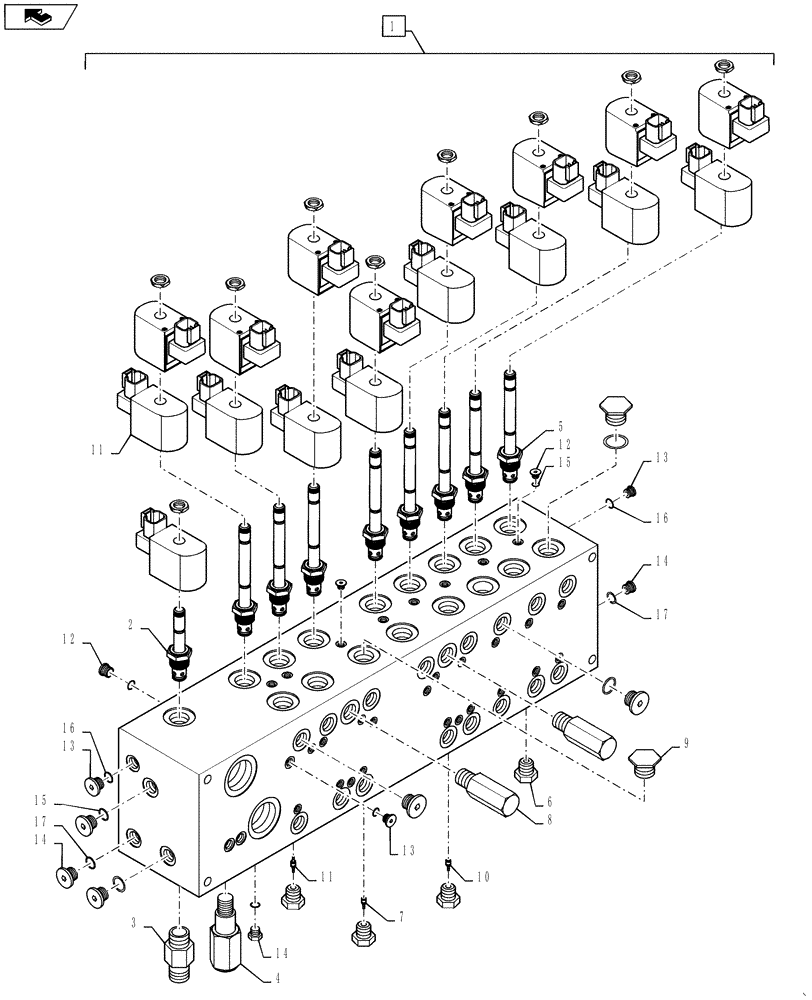

Запчасти Case IH 810 (35.359.08[02]) - 8 SECTION VALVE BANK BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

87267723

VALVE

8 Section Manifold, Without Fittings

1шт.

2

BN318091

SOLENOID VALVE

2/2 Way

1шт.

3

BN318087

CONTROL

Flow

1шт.

4

BN303856

VALVE PRESSURE RELIE

1800 PSI

1шт.

5

343278A1

VALVE

3/4 Way

8шт.

6

87590496

VALVE

Check, 100 PSI

16шт.

7

343286A1

PISTON

Pilot

2шт.

8

87267924

VALVE PRESSURE RELIE

174PSI

2шт.

9

343287A1

PLUG

Orfice, .069

2шт.

10

343280A1

PISTON

Pilot

6шт.

11

87267925

COIL,12V

12V DC

17шт.

12

86632547

PLUG,Hex, 5/16"-24 ORB

Includes Ref 15

64шт.

13

87649288

PLUG

7/16"-20 ORB, Socket Head, Includes Ref 16

5шт.

14

218-5209

PLUG,Hex, 9/16"-18 ORB

Includes Ref 17

3шт.

15

86010510

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

5/16", ORB

64шт.

16

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

5шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

3шт.
