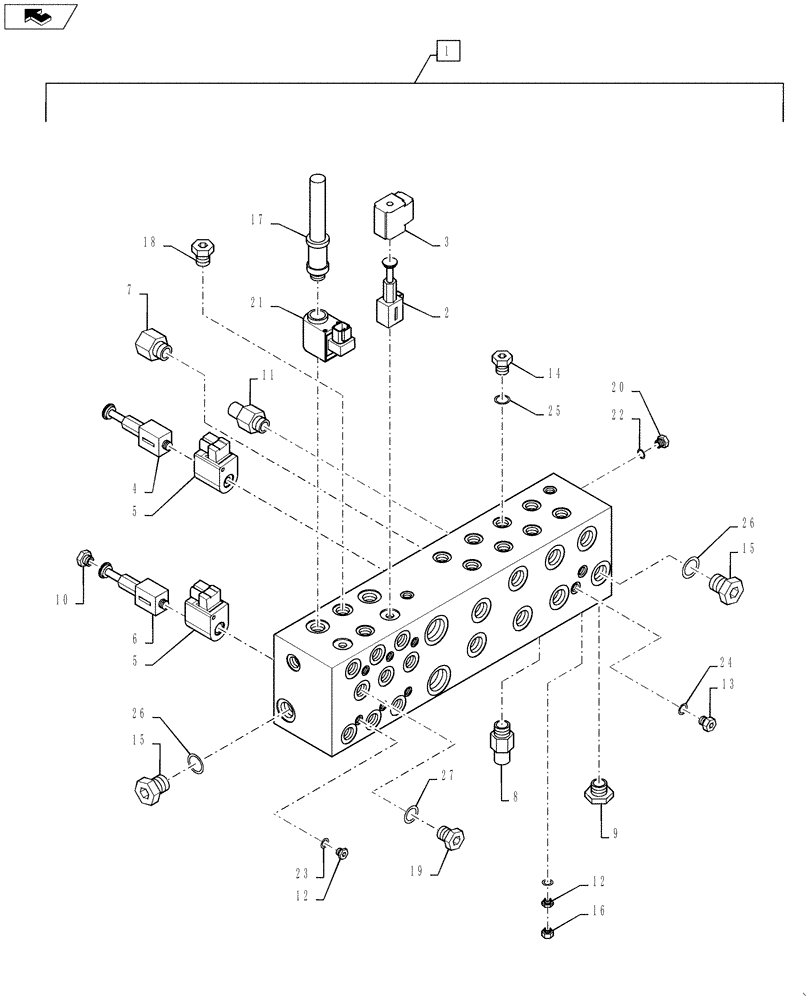

Запчасти Case IH 810 (35.359.07[02]) - VALVE BREAKDOWN, DOUBLE BIN WITH AUGERS (35) - HYDRAULIC SYSTEMS

1

87267741

HYDRAULIC VALVE

Without Fittings, Double Bin With Augers, Complete, Includes Ref 2 - 29

1шт.

2

BN303849

SOLENOID VALVE

2/3 Way

4шт.

3

87267935

COIL

12V, DC

4шт.

4

BN303851

SOLENOID VALVE

2/2 Way

3шт.

5

87267925

COIL,12V

12V, DC

4шт.

6

BN303853

HYDRAULIC VALVE

2/2 Way Solenoid

1шт.

7

BN324995

CHECK VALVE

30 PSI

3шт.

8

BN303855

VALVE PRESSURE RELIE

2700 PSI

1шт.

9

BN303857

HYDRAULIC VALVE

Flow Control

1шт.

10

BN303859

PLUG

Orfice, .242"

1шт.

11

87266994

VALVE PRESSURE RELIE

2175 PSI

1шт.

12

218-5206

PLUG,Hex, 3/8"-24 ORB

Includes Ref 23

8шт.

13

218-5209

PLUG,Hex, 9/16"-18 ORB

Includes Ref 24

12шт.

14

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Includes Ref 25

17шт.

15

218-5212

PLUG,1-1/16" - 12 ORB

Includes Ref 26

3шт.

16

BN303865

PLUG

Orfice, .020"

1шт.

17

87270622

HYDRAULIC VALVE

Prop Flow Control

2шт.

18

BN303867

PLUG

Cavity

1шт.

19

218-5210

PLUG,Hex, 3/4"-16 ORB

Includes Ref 27

3шт.

20

87649288

PLUG

7/16"-20 ORB, Socket Head, Includes Ref 28

1шт.

21

87267936

COIL

12V, DC

2шт.

22

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

1шт.

23

86513328

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3/8", ORB

8шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

12шт.

25

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

17шт.

26

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

3шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

3шт.
