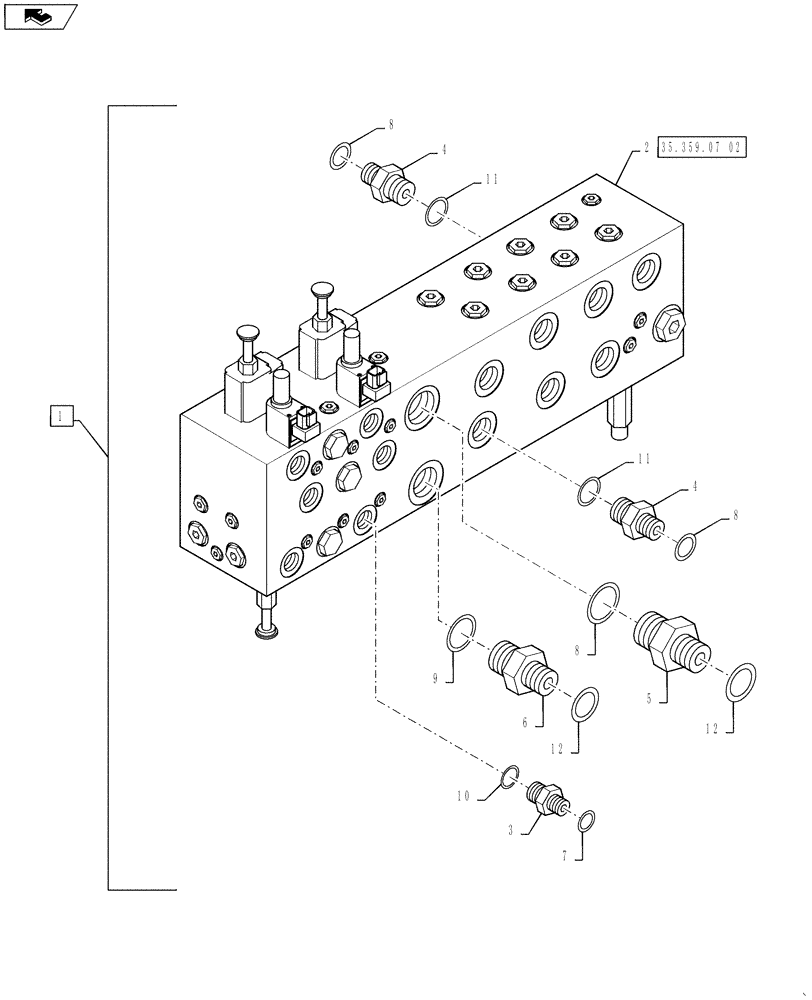

Запчасти Case IH 810 (35.359.07[01]) - VALVE WITH FITTINGS, DOUBLE BIN WITH AUGERS (35) - HYDRAULIC SYSTEMS

1

87267731

HYDRAULIC VALVE

With Fittings, Double Bin With Augers, Complete, Includes Ref 2 - 12

1шт.

2

87267741

HYDRAULIC VALVE

Without Fittings, Double Bin With Augers

1шт.

See Fig 35.359.07(02) For Service Parts

1шт.

3

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref 7 and 10

6шт.

4

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 8 and 11

8шт.

5

BN57233

FITTING

1-3/16"-12 ORFS x 1-5/16"-12 ORB, Includes Ref 8 and 12

1шт.

6

BN57223

FITTING

1-7/16"-12 ORFS x 1-5/16"-12 ORB, Includes Ref 9 and 12

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

6шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

9шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

6шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

8шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

2шт.
