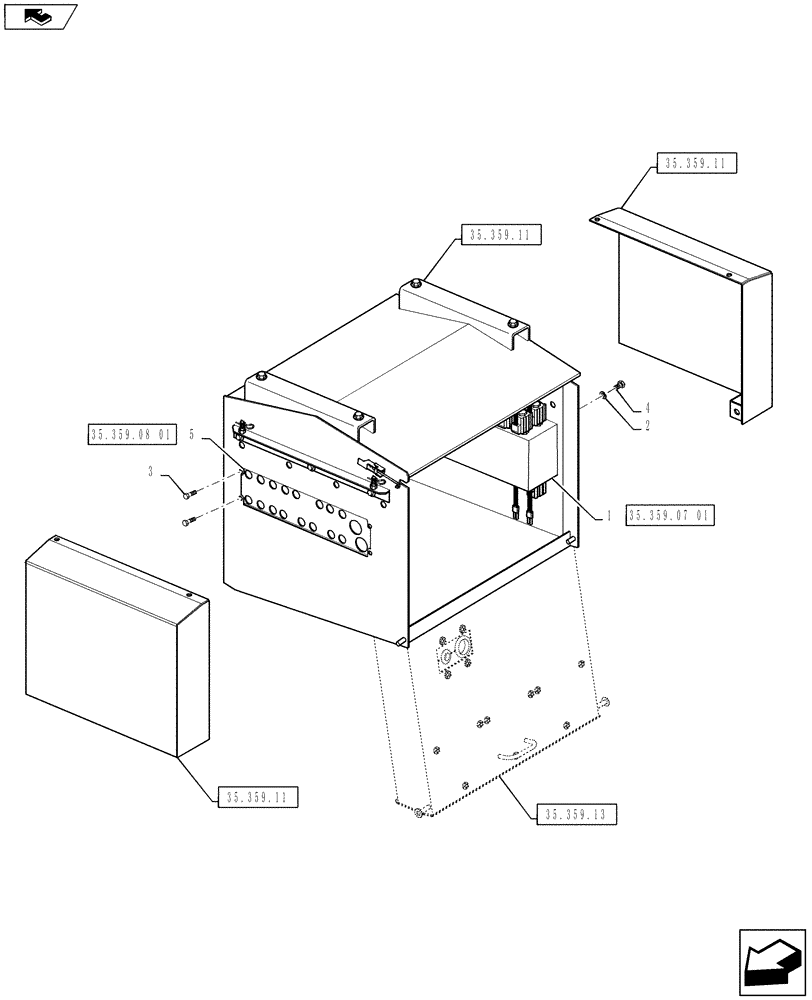

Запчасти Case IH 810 (35.359.06) - HYDRAULIC CONTROL VALVE BOX, DOUBLE BIN WITH AUGERS (35) - HYDRAULIC SYSTEMS
home
1
3
35.359.11
35.359.08 01
35.359.07 01
35.359.11
35.359.13
35.359.11
4
5
2
№
Артикул
Название
Примечание
Количество
1
87267731
HYDRAULIC VALVE
Manifold, Double, With Fittings
1шт.
See Fig 35.359.07(01) For Service Parts
1шт.
2
BN50144
LOCK WASHER
5/16" SS, Lock
6шт.
3
86980378
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
4шт.
4
BN50476
BOLT,5/16"-18 x 0.75", Stainless
6шт.
5
344012A1
HYDRAULIC VALVE
8 Section Manifold
1шт.
See Fig 35.359.08(01) For Service Parts
1шт.
Выбрано товаров: 7
