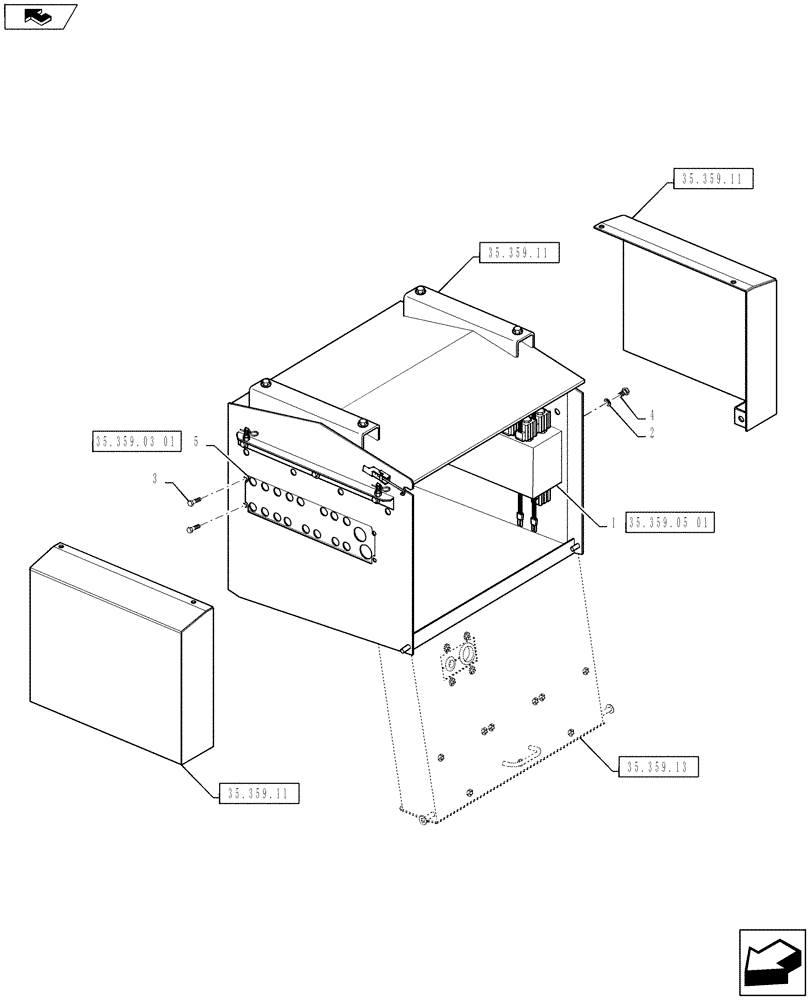

Запчасти Case IH 810 (35.359.04) - HYDRAULIC CONTROL VALVE BOX, DOUBLE BIN WITHOUT AUGERS (35) - HYDRAULIC SYSTEMS

1

87267732

MANIFOLD VALVE

With Fittings, Double Bin Without Augers

1шт.

See Fig 35.359.05(01) For Service Parts

1шт.

2

BN50144

LOCK WASHER

5/16" SS, Lock

6шт.

3

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

6шт.

5

344011A1

HYDRAULIC VALVE

7 Section Manifold

1шт.

See Fig 35.359.03(01) For Service Parts

1шт.
