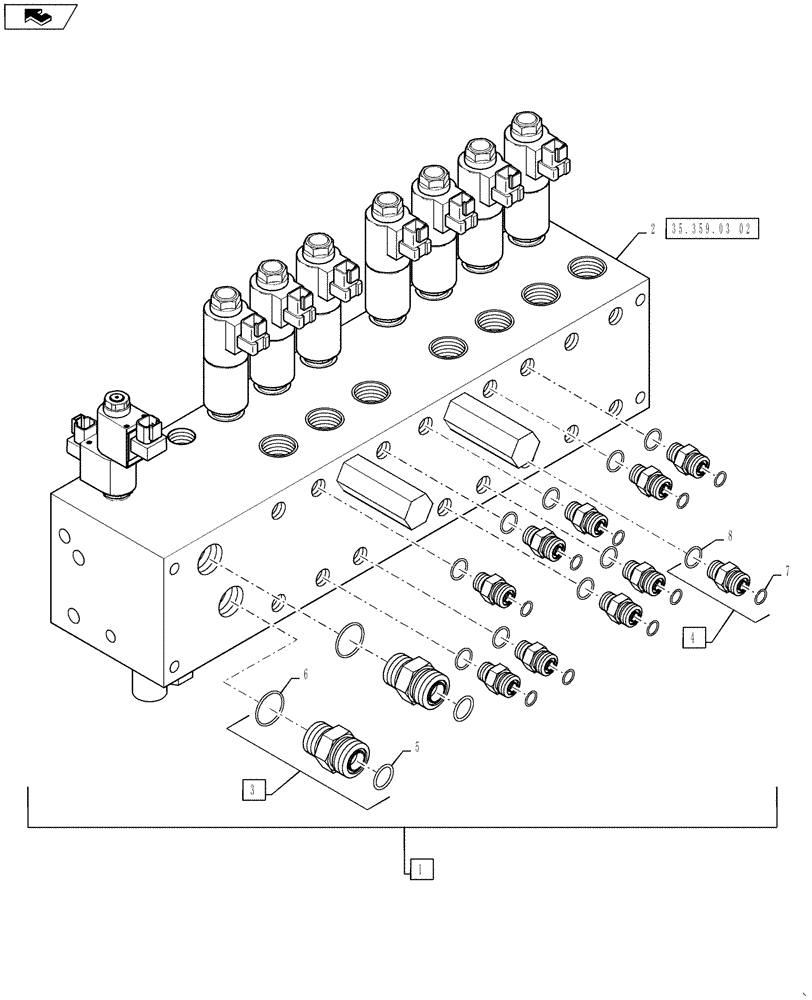

Запчасти Case IH 810 (35.359.03[01]) - 7 SECTION VALVE BANK (35) - HYDRAULIC SYSTEMS

1

344011A1

HYDRAULIC VALVE

7 Section Manifold

1шт.

2

87267722

VALVE

7 Section Manifold, Without Fittings

1шт.

See Fig 35.359.03(02) For Service Parts

1шт.

3

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 5 and 6

3шт.

4

BN302646

FITTING

11/16-16 ORFS x 9/16-18 ORB, Includes Ref 7 and 8

14шт.

5

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1-3/16", ORFS

3шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

3шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

14шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

14шт.
