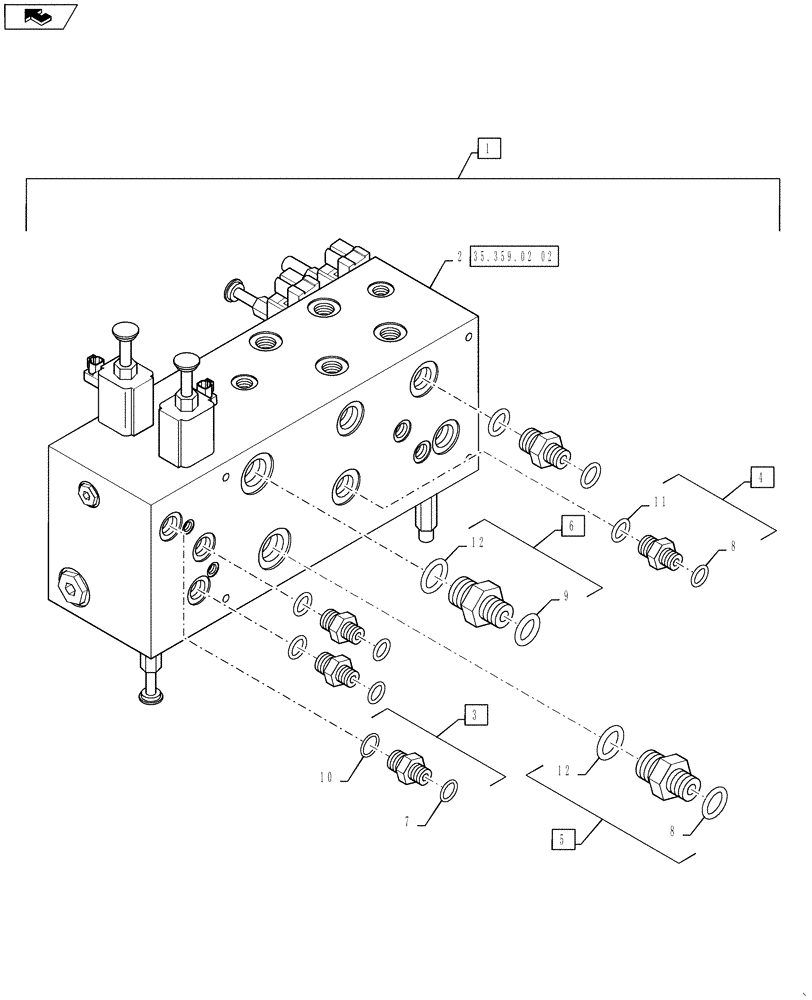

Запчасти Case IH 810 (35.359.02[01]) - VALVE WITH FITTINGS, SINGLE BIN (35) - HYDRAULIC SYSTEMS

1

87267733

HYDRAULIC VALVE

Single Bin, Complete, Includes Ref 2 - 6

1шт.

1

87267733R

REMAN-HYD VALVE

Single Bin, Complete, Includes Ref 2 - 6

1шт.

1

87267733C

CORE-VALVE HYD

Core Return Number

1шт.

2

87267743

HYDRAULIC VALVE

Single Bin, Without Fittings

1шт.

See Fig 35.359.02(02) For Service Parts

1шт.

3

BN302650

FITTING

13/16 -16 ORFS x 3/4 -16 ORB, Includes Ref 7 and 10

3шт.

4

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Includes Ref 8 and 11

3шт.

5

BN57233

FITTING

1-3/16"-12 ORFS x 1-5/16"-12 ORB, Includes Ref 8 and 12

1шт.

6

BN57223

FITTING

1-7/16"-12 ORFS x 1-5/16"-12 ORB, Includes Ref 9 and 12

1шт.

7

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

3шт.

8

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

1шт.

10

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

3шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

3шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

2шт.
