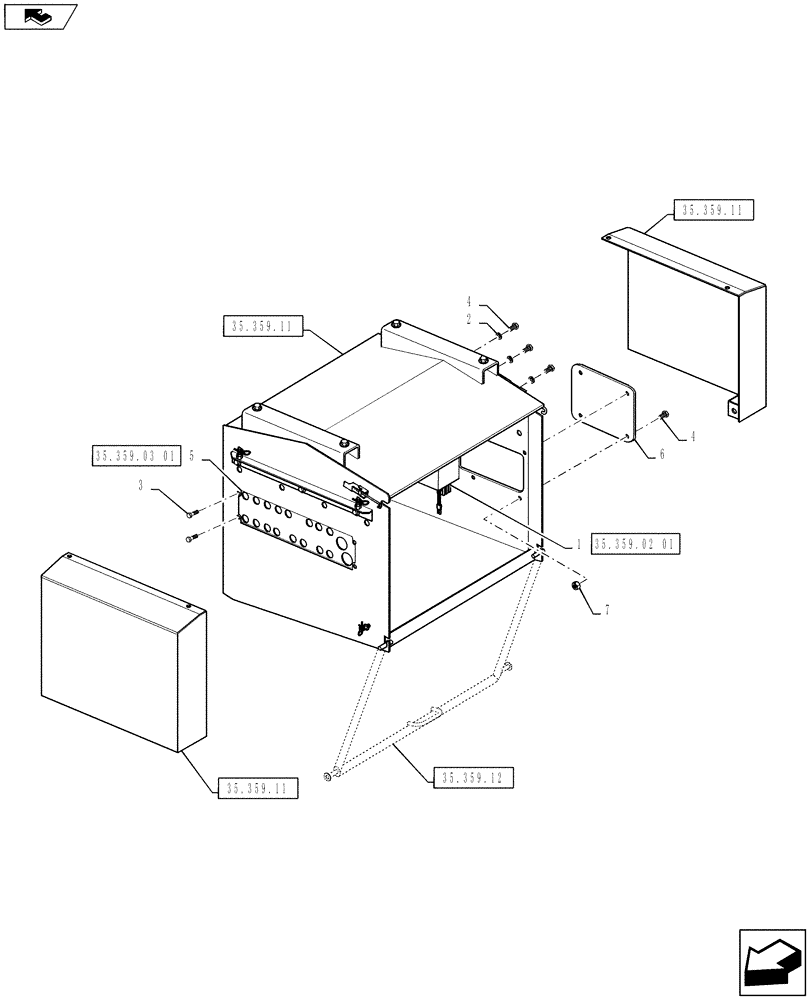

Запчасти Case IH 810 (35.359.01) - HYDRAULIC CONTROL VALVE BOX, SINGLE BIN (35) - HYDRAULIC SYSTEMS

1

87267733

HYDRAULIC VALVE

With Fittings, Single Bin

1шт.

See Fig 35.359.02(01) For Service Parts

1шт.

1

87267733R

REMAN-HYD VALVE

Reman With Fittings, Single Bin

1шт.

1

87267733C

CORE-VALVE HYD

Core Return Number

1шт.

2

BN50144

LOCK WASHER

5/16" SS, Lock

4шт.

3

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

4шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

8шт.

5

344011A1

HYDRAULIC VALVE

7 Section Manifold

1шт.

See Fig 35.359.03(01) For Service Parts

1шт.

6

BN313449

COVER

Valve Box Side

1шт.

7

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.
