(90.108.06) - TRIPLE BIN DECALS

Запчасти Case IH 810 (90.108.06) - TRIPLE BIN DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

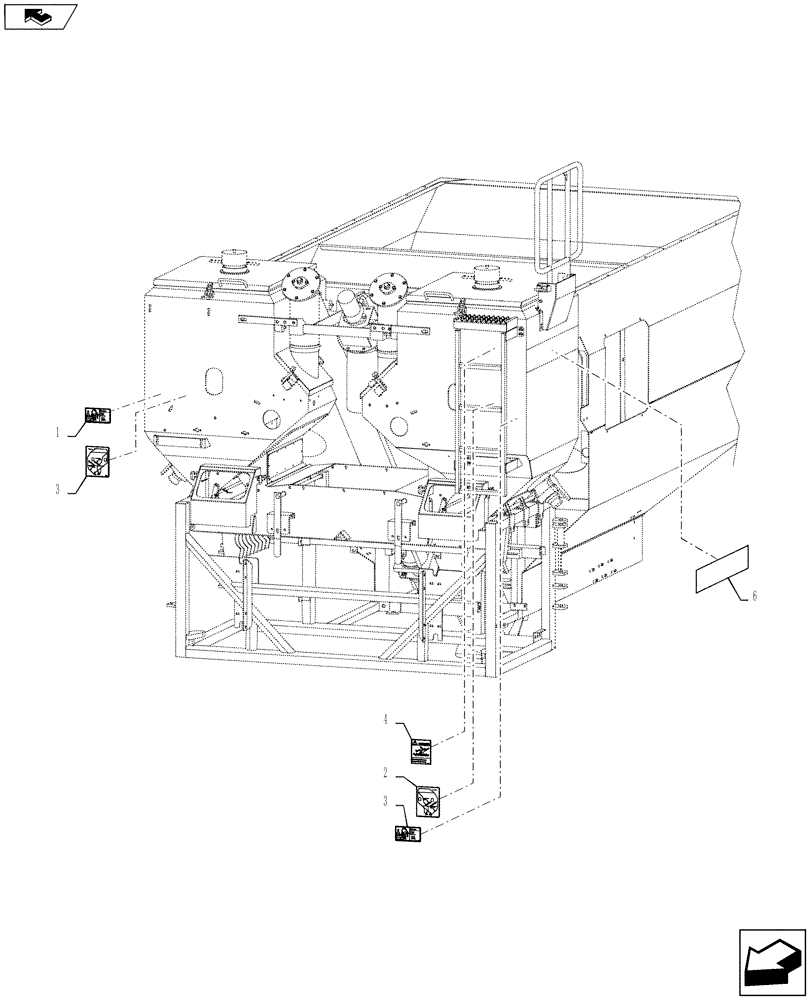

Схема запчастей Case IH 810 - (90.108.06) - TRIPLE BIN DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
3
home
6
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN65476

DECAL

Gate Position, RH

1шт.

2

BN65477

DECAL

Gate Position, LH

1шт.

3

BN65479

DECAL

Warning Tipping Bins

2шт.

4

87268088

DECAL

Danger, Do Not Enter

1шт.

5

87671607

DECAL

RH Tank, Fade Strip, Not Shown

1шт.

6

87671846

DECAL

LH Tank, Fade Strip

1шт.

Выбрано товаров: 6
