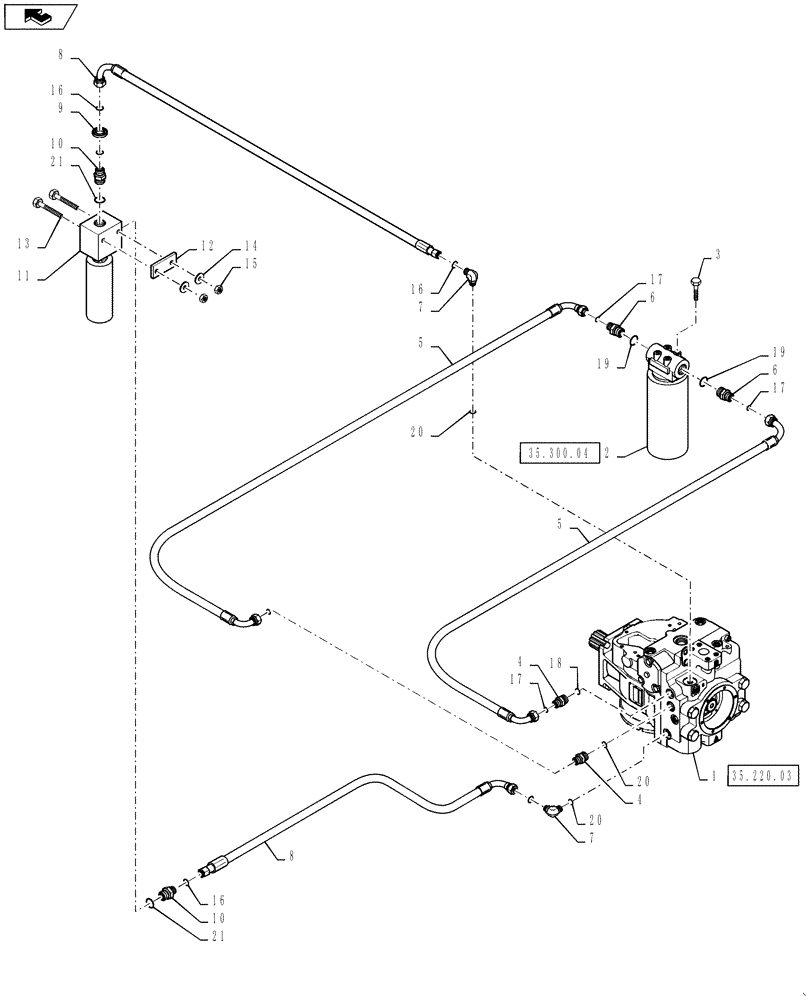

Запчасти Case IH 810 (35.300.02) - HYDRAULIC LINES AND FILTER, 3 WHEELER (35) - HYDRAULIC SYSTEMS

1

BN309564

PUMP

75CC Hydrostat, 90 Series, 810 Drive Pump

1шт.

See Fig 35.220.03 For Service Parts

1шт.

2

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

See Fig 35.300.04 For Service Parts

1шт.

3

BN50250

BOLT,3/8"-16 x 3/4", Stainless Steel

4шт.

4

BN302651

FITTING

13/16-16 ORFS x 7/8-14 ORB

2шт.

5

BN313282

HOSE

13/16-16 ORFS Swivel x 13/16-16 ORFS Swivel Elbow x 1/2" ID x 30" Long, Hydrostatic Pump to Medium Pressure Filter

2шт.

6

BN302652

FITTING

13/16" -16 OFRS x 1-1/16" -12 ORB

2шт.

7

BN302553

ELBOW

11/16-16 ORFS x 9/16-18 ORB

2шт.

8

87267873

HOSE

11/16-16 ORFS Swivel x 11/16-16 ORFS Swivel Elbow x 1/4" ID x 29" Long, Hydrostatic, Serial Range: Pump-Valve

2шт.

9

342569A1

ORIFICE

.060-6 disc

1шт.

10

BN302647

FITTING

11/16-16 ORFS x 3/4-16 ORB

2шт.

11

84155893

VALVE POPPET

48 SEC, Motorized Relief

1шт.

12

BN310240

SPACER

Remote Servo

1шт.

13

BN55367

BOLT

1/4-20 X 3-1/4", Stainless Steel

2шт.

14

BN50138

WASHER,1/4", SS

2шт.

15

BN55359

LOCK NUT,1/4"-20, SS

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

5шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

4шт.

18

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

2шт.

19

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

2шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

21

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

2шт.
