(78.120.03.BA) - PRESSURE WASHER PLUMBING, WITH WET BOOM OPTION

Запчасти Case IH 810 (78.120.03.BA) - PRESSURE WASHER PLUMBING, WITH WET BOOM OPTION (78) - SPRAYING

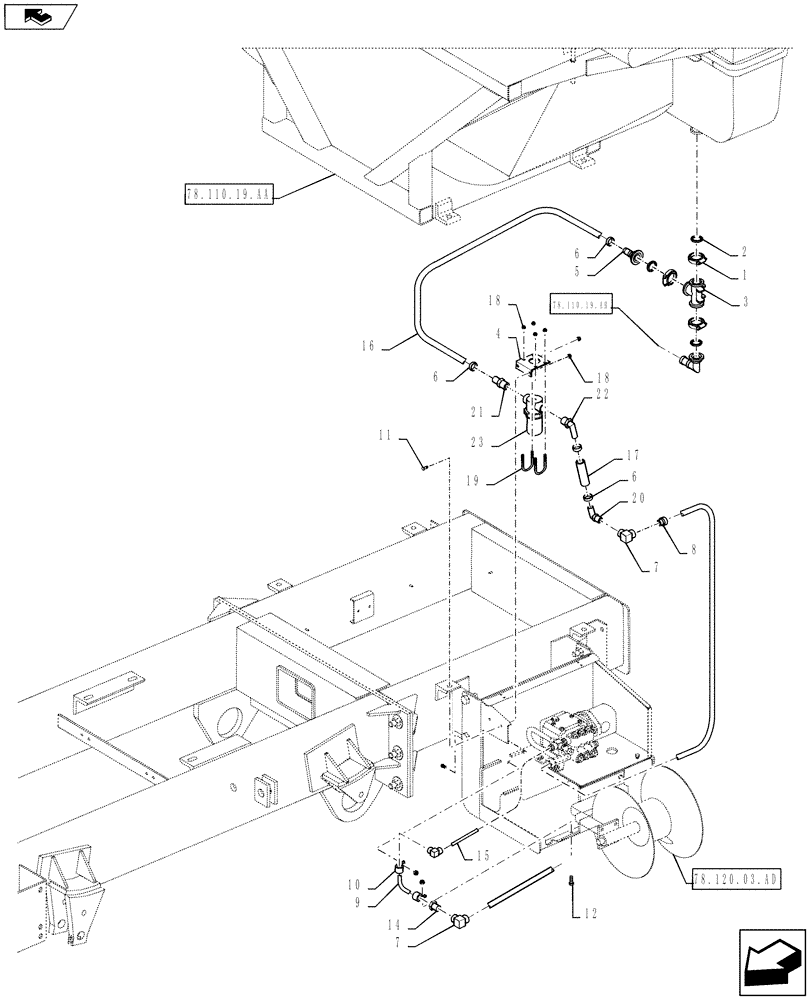

Схема запчастей Case IH 810 - (78.120.03.BA) - PRESSURE WASHER PLUMBING, WITH WET BOOM OPTION (78) - SPRAYING
23
7
6
78.110.19.aa
78.120.03.ad
78.110.19.ab
18
2
21
4
7
9
home
6
16
20
18
3
5
14
8
1
17
15
6
12
11
19
10
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303203

CLAMP,1" Flange

1" Flange

2шт.

2

BN303205

GASKET

1” Flange, EPDM

2шт.

3

BN304316

FITTING,1" Flange x 1" Flange x 1" Flange, Poly

1" Flange, Tee, Poly

1шт.

4

BN304533

MOUNTING PLATE

Strainer

1шт.

5

BN306904

FITTING,1" Flange x 3/4" Hose Barb

1" Flange x 3/4" Hose Barb, Poly

1шт.

6

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

7

BN311525

FITTING

1/2" FPT x 1/2" FPT

2шт.

8

BN311603

COUPLING

3/4-11.5 NHM, 1/2-14 NPTM

1шт.

9

BN311605

HOSE,39.00"

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

12

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

13

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

14

BN51102

FITTING

1/2 NPT x 3/8 NPT, STL

1шт.

15

BN51128

ADAPTER

3/8" NPT x 3/8" NPT

1шт.

16

BN53914

HOSE,0.75" ID x 60.00"

1шт.

17

BN27905

HOSE,19.05mm ID x 304.8mm L

3/4" ID EPDM, Bulk, Cut to Length of 4"

1шт.

18

BN55359

LOCK NUT,1/4"-20, SS

6шт.

19

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

2шт.

20

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

21

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

22

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

23

BN73567

FILTER STRAINER

3/4"

1шт.
