(78.120.03.AE) - PRESSURE WASHER ASSEMBLY

Запчасти Case IH 810 (78.120.03.AE) - PRESSURE WASHER ASSEMBLY (78) - SPRAYING

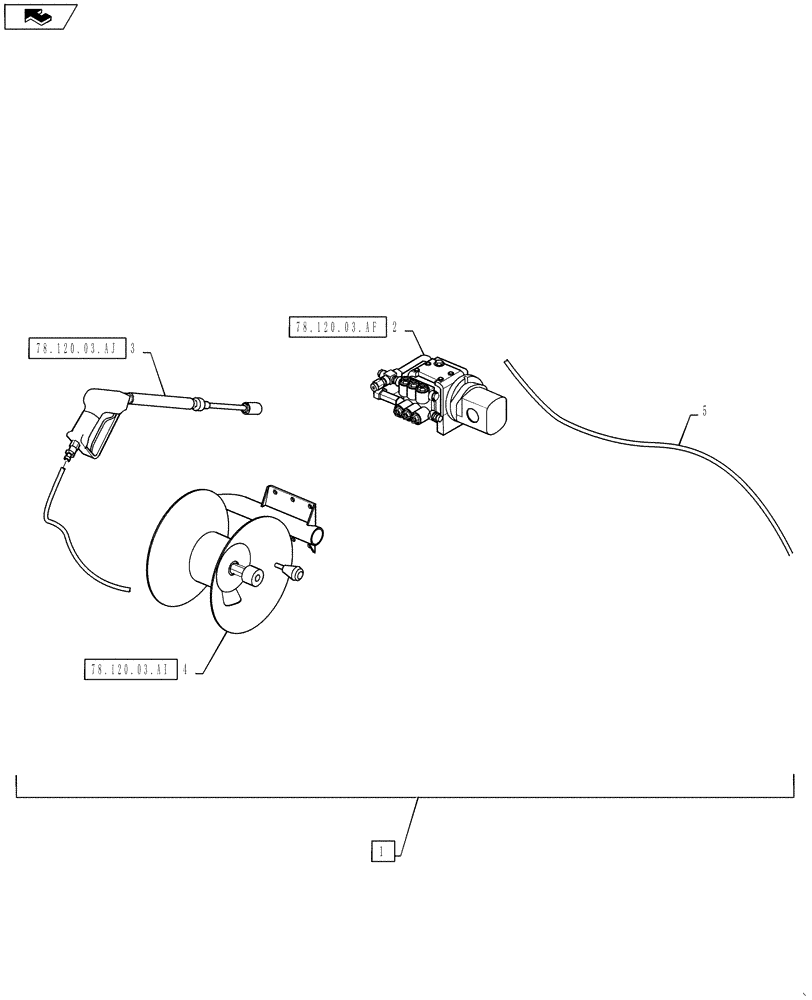

Схема запчастей Case IH 810 - (78.120.03.AE) - PRESSURE WASHER ASSEMBLY (78) - SPRAYING
3
2
4
home
78.120.03.ai
78.120.03.af
78.120.03.aj
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN311492

WASHER

Pressure, 3 GPM 2000 PSI, Includes Ref 2 - 5

1шт.

2

BN322326

WATER PUMP

Pressure Washer

1шт.

See Fig 78.120.03.AF For Service Parts

1шт.

3

BN322325

HANDLE

Pressure Washer Gun

1шт.

See Fig 78.120.03.AJ For Service Parts

1шт.

4

87272646

HOSE REEL

Pressure Washer

1шт.

See Fig 78.120.03.AI For Service Parts

1шт.

5

BN311612

HOSE,12.00"

From Pump to Hose Reel

1шт.
