Запчасти Case IH 810 (78.120.03.AC) - PRESSURE WASHER PLUMBING GROUP (78) - SPRAYING

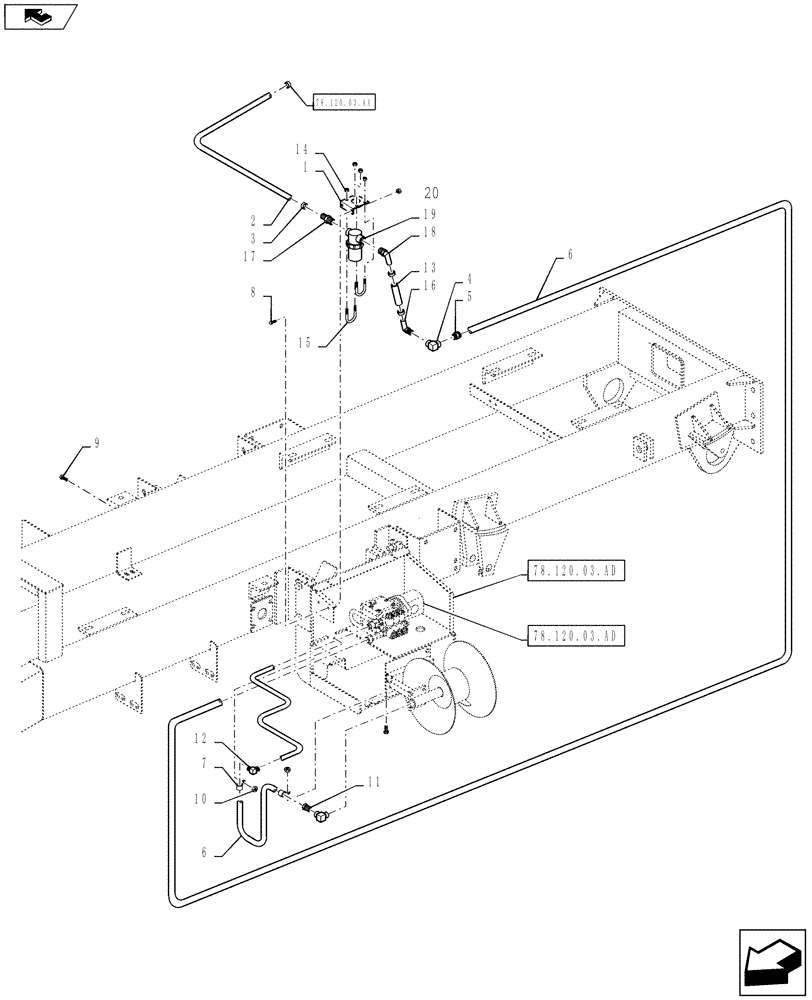

Схема запчастей Case IH 810 - (78.120.03.AC) - PRESSURE WASHER PLUMBING GROUP (78) - SPRAYING
7
6
1
2
16
15
19
78.120.03.aa
78.120.03.ad
78.120.03.ad
5
6
9
3
11
10
8
20
12
18
4
14
17
home
13

Артикул

Название

Примечание

Количество

1

BN304533

MOUNTING PLATE

Strainer

1шт.

2

BN27905

HOSE,19.05mm ID x 304.8mm L

3/4" ID, Bulk, Cut to Length of 190"

1шт.

3

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

4

BN311525

FITTING

1/2" FPT x 1/2" FPT

2шт.

5

BN311603

COUPLING

3/4-11.5 NHM, 1/2-14 NPTM

1шт.

6

BN311605

HOSE,39.00"

1шт.

7

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

8

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

11

BN51102

FITTING

1/2 NPT X 3/8 NPT, STL

1шт.

12

BN51128

ADAPTER

3/8" NPT x 3/8" NPT

1шт.

13

BN27905

HOSE,19.05mm ID x 304.8mm L

3/4" ID, Bulk, Cut to Length of 4"

1шт.

14

BN55359

LOCK NUT,1/4"-20, SS

6шт.

15

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

2шт.

16

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

1шт.

17

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

18

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

19

BN73567

FILTER STRAINER

3/4"

1шт.

20

BN73681

FILTER STRAINER

#50 Mesh, Service Filter For Ref 19

1шт.

Выбрано товаров: 20
