Запчасти Case IH 810 (78.120.02.AA) - FOAM MARKER CENTER SOLENOID GROUP (78) - SPRAYING

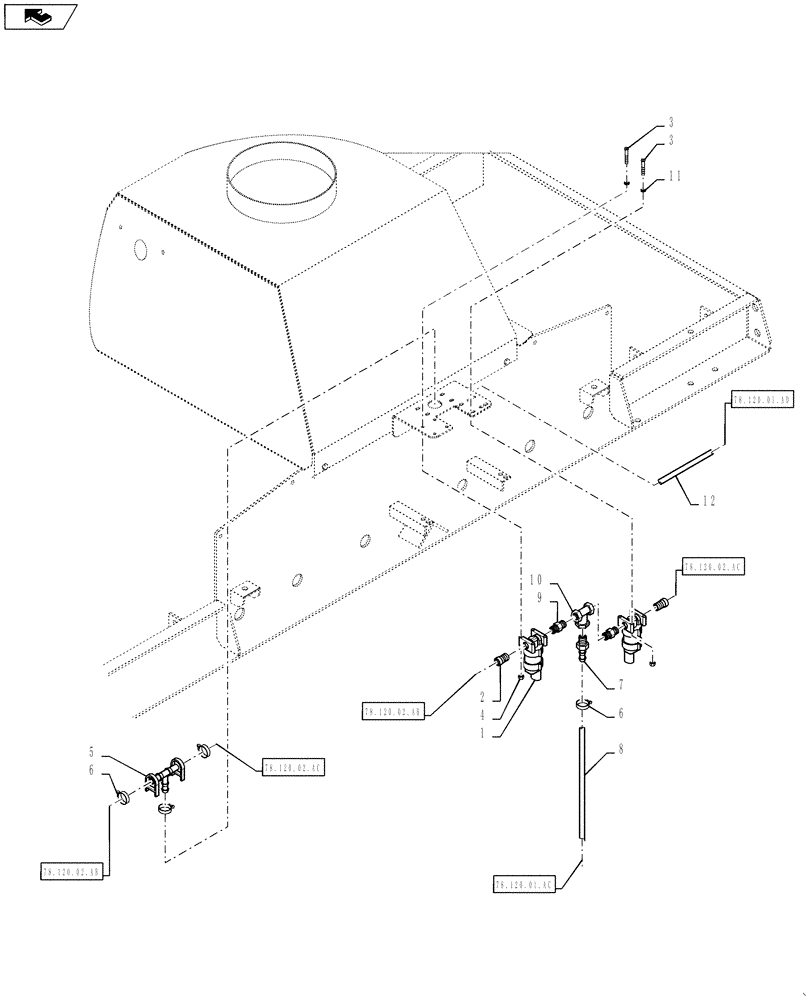

Схема запчастей Case IH 810 - (78.120.02.AA) - FOAM MARKER CENTER SOLENOID GROUP (78) - SPRAYING
12
78.120.01.ac
78.120.02.ab
6
9
78.120.02.ac
7
78.120.02.ac
2
6
5
4
78.120.02.ab
3
3
10
78.120.01.ad
8
11
1
home

Артикул

Название

Примечание

Количество

1

BN307938

VALVE

Solenoid, 1/4" NPT

2шт.

2

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

3

BN317051

BOLT

6-32 X 1.25"

8шт.

4

BN317053

LOCK NUT

6-32 Nylon Lock

8шт.

5

BN324009

TEE

1/2" Hose Barb, Poly

1шт.

6

BN324022

HOSE CLAMP

#8, Stainless Steel

5шт.

7

86986810

FITTING

3/8" Hose Barb X 1/4" NPT, Poly

1шт.

8

86986177

HOSE,0.38" ID x 100.00"

Clear

1шт.

9

86986808

NIPPLE

1/4" Short, Poly

2шт.

10

86986807

TEE

1/4" NPT, Poly

1шт.

11

87529123

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

0.156 x 0.375 x 0.049 CST DOR

4шт.

12

86986173

HOSE,0.50" ID x 200.00"

1шт.

Выбрано товаров: 12
