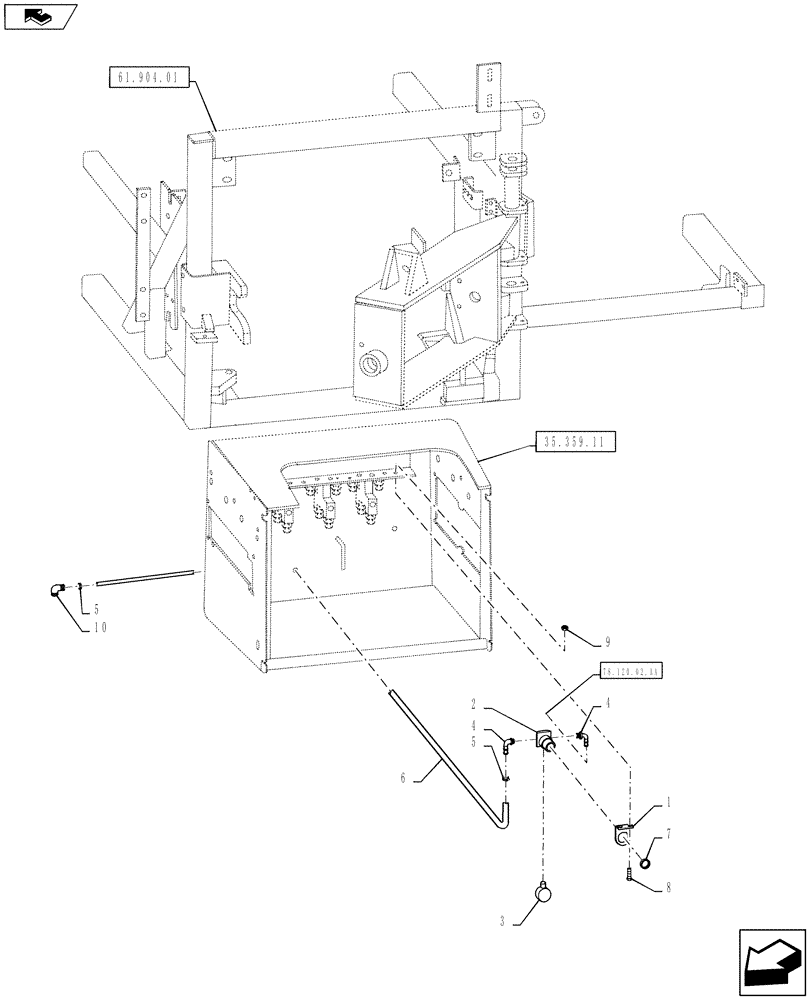

Запчасти Case IH 810 (78.120.01.AD) - FOAM MARKER AIR SUPPLY SYSTEM (78) - SPRAYING

1

86986598

MOUNTING PLATE

Air Regulator

1шт.

2

87388151

REGULATOR

Air Pressure

1шт.

3

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

4

87265091

FITTING

1/4" NPT x 1/2" Hose Barb, 90º, Poly

2шт.

5

BN324022

HOSE CLAMP

#8, Stainless Steel

2шт.

6

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge, Bulk, Cut to Length of 120"

1шт.

7

87388327

NUT

Panel Mount, Plastic

1шт.

8

BN2407985

SCREW,Hex, #10 - 24 x 3/4"

10-24 x 3/4", HH, SST

2шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

10

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

1шт.

Fitting Attaches to Air Supply Manifold Mounted On The Chassis. See The Chassis Catalog For Further Part Information

1шт.

11

217-1143

TEE,1/2"-14 Female x 1/2"-14 Male Br

Not Shown

1шт.

Used Only On 3 Wheeler Chassis. Attaches To Ref 10

1шт.

12

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

Not Shown

1шт.

Used Only On 3 Wheeler Chassis. Attaches To Ref 11

1шт.
