Запчасти Case IH 810 (78.120.01.AC) - FOAM MARKER PUMP AND BOOM SUPPLY LINES (78) - SPRAYING

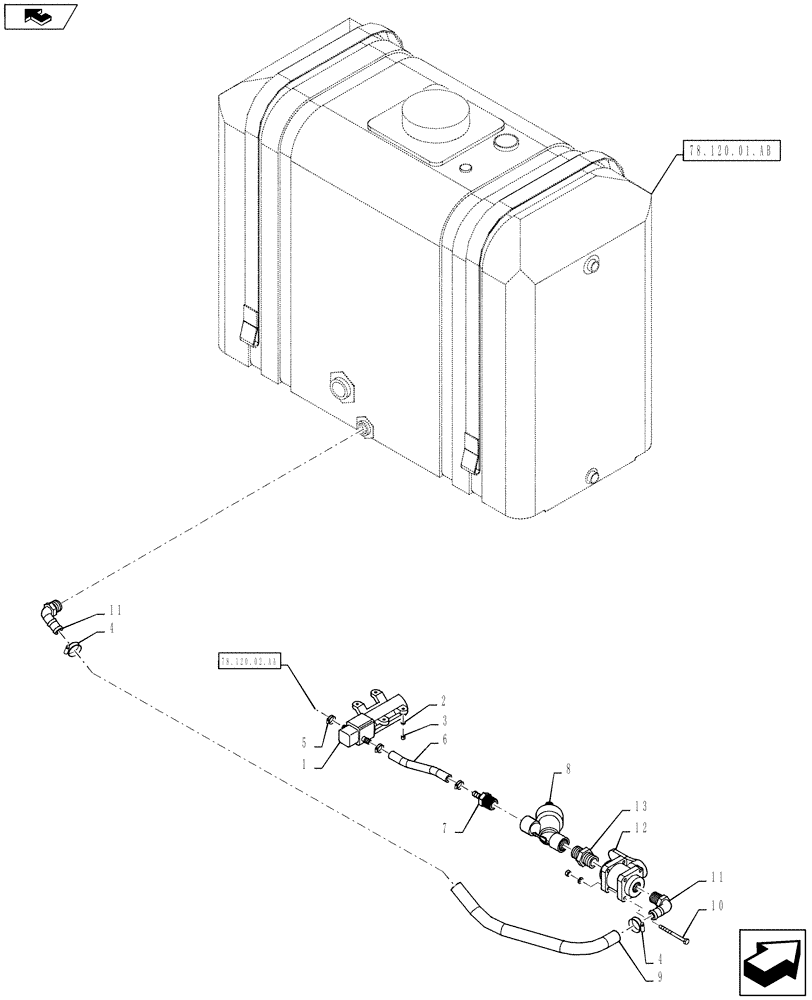

Схема запчастей Case IH 810 - (78.120.01.AC) - FOAM MARKER PUMP AND BOOM SUPPLY LINES (78) - SPRAYING
6
8
3
2
9
5
7
78.120.01.ab
78.120.02.aa
4
4
home
13
10
12
11
11
1

Артикул

Название

Примечание

Количество

1

87727677

PUMP,12V

Diaphragm, 1 GPM, 12V, Foam Transfer

1шт.

2

BN310265

WASHER

10, Stainless Steel

4шт.

3

BN303136

NUT

10-32, NLN, G5

4шт.

4

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

5

BN310450

HOSE CLAMP

#3, Stainless Steel

3шт.

6

87266748

HOSE

3/8" x 10.5" Clear

1шт.

7

343436A1

PIPE FITTING,3/4" Male Thread x 3/8" Hose Barb

3/4" MPT X 3/8" Hose Barb, Poly

1шт.

8

BN324892

FILTER STRAINER,3/4" x 3/4" Y Strainer

3/4", "Y" Style, 40 Mesh, Poly

1шт.

9

87266749

HOSE

3/4" X 18" Clear

1шт.

10

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

2шт.

11

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

2шт.

12

BN73564

VALVE

3/4" Ball Poly 2 Way, Full, Poly

1шт.

13

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

Выбрано товаров: 13
