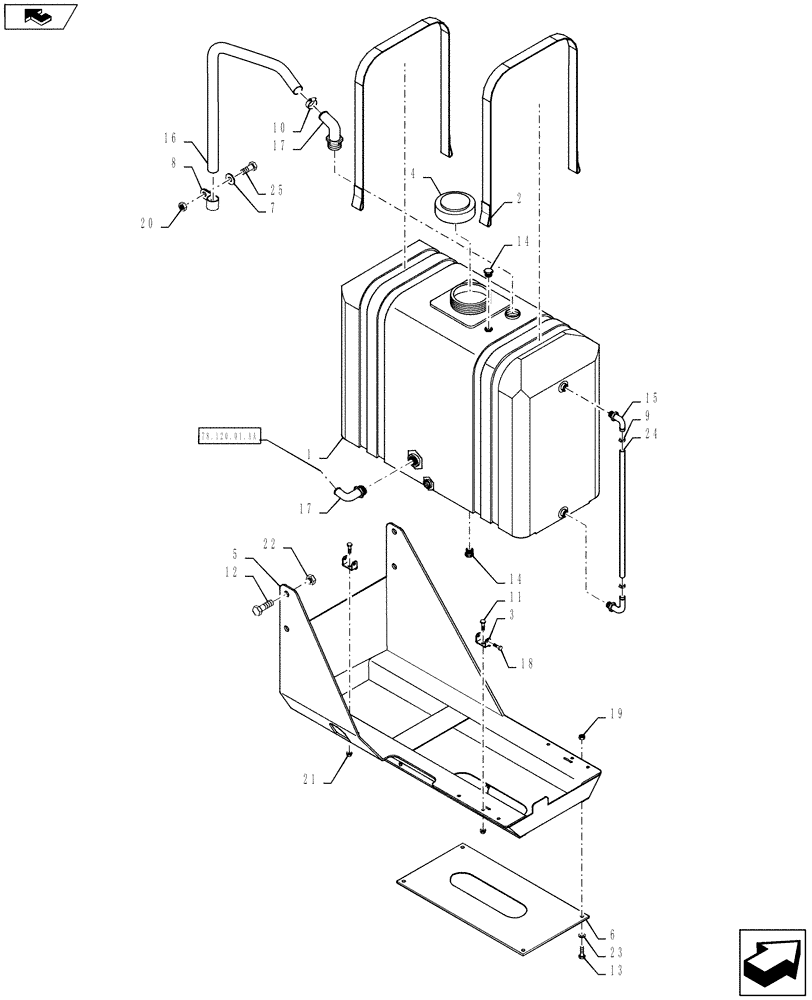

Запчасти Case IH 810 (78.120.01.AB) - FOAM MARKER TANK (78) - SPRAYING

1

BN323080

TANK

70 Gallon, Foam Marker, Poly, Includes Ref 4

1шт.

2

87268267

STRAP

38 mm x 1570 mm, Flateye

2шт.

3

BN324375

BRACKET

Foam Tank Strap

4шт.

4

BN314276

COVER

Foam Marker Tank, 6", With Breather

1шт.

5

87266745

FRAME

Foam Tank

1шт.

6

87267518

PLATE

Foamer Frame Bottom Cover

1шт.

7

BN50142

WASHER,5/16", Stainless Steel

1шт.

8

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

9

BN310446

HOSE CLAMP

#12, Stainless Steel

2шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

11

87342143

BOLT,M10 x 60, 8.8, DOR

4шт.

12

87342861

BOLT

3/4"-10 x 1-3/4", G5, DOR

4шт.

13

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

14

BN73502

PLUG

1/2" Pipe Poly

2шт.

15

BN73519

ELBOW

1/2" NPT x 3/4" Hose Barb

2шт.

16

86986359

HOSE,1.50" ID x 63.00"

Kaniflex

1шт.

17

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

18

86980386

BOLT,Hex, M8 - 1.25 x 60mm, Cl 8.8, DOR

4шт.

19

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

20

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

21

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

22

87310323

NUT,3/4"-10, GR B, DOR

4шт.

23

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

24

BN319020

HOSE,0.75" ID x 21.00"

Clear Vinyl

1шт.

25

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.
