Запчасти Case IH 810 (78.110.19.BA) - RINSE TANK SIGHT GAUGE (78) - SPRAYING

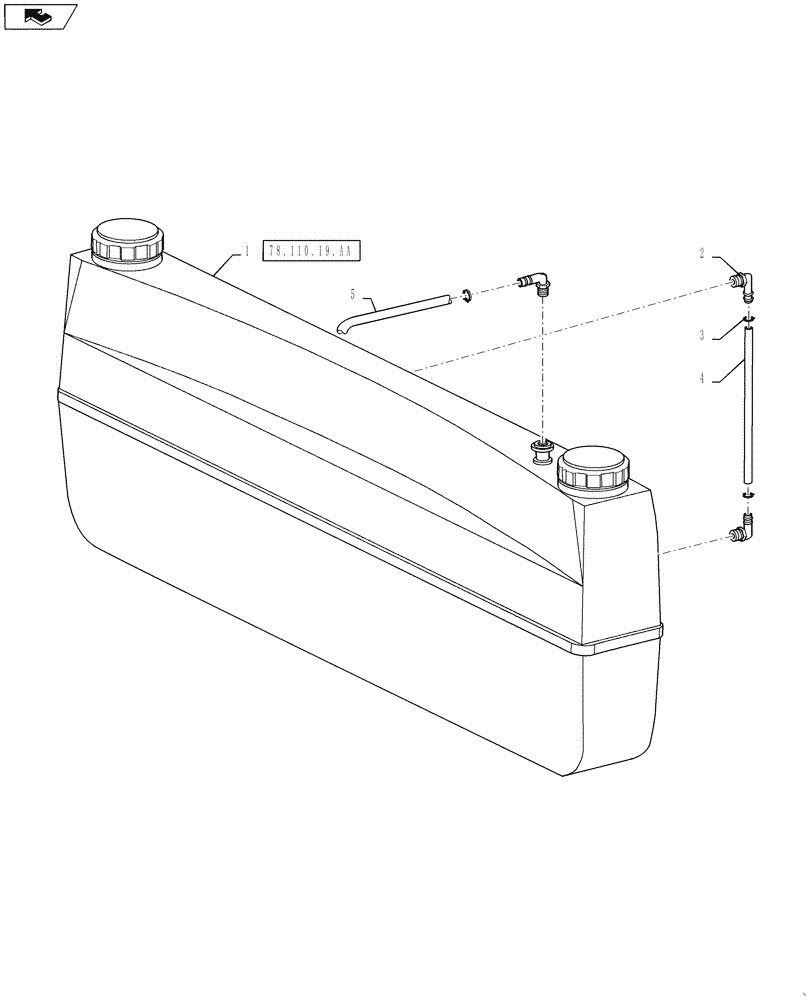

Схема запчастей Case IH 810 - (78.110.19.BA) - RINSE TANK SIGHT GAUGE (78) - SPRAYING
2
3
1
78.110.19.aa
4
home
5

Артикул

Название

Примечание

Количество

1

BN309282

TANK

Rinse, 75 Gallon, Gray

1шт.

2

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

3шт.

3

BN310446

HOSE CLAMP

#12, Stainless Steel

3шт.

4

BN319020

HOSE,0.75" ID x 21.00"

Clear Vinyl, Rinse Tank Sight Level

1шт.

5

BN27905

HOSE,19.05mm ID x 304.8mm L

3/4" EPDM, Bulk, Breather, Cut to Length of 92"

1шт.

Выбрано товаров: 5
