Запчасти Case IH 810 (78.110.19.AB) - PRODUCT TANK RINSE, WET BOOM OPTION (78) - SPRAYING

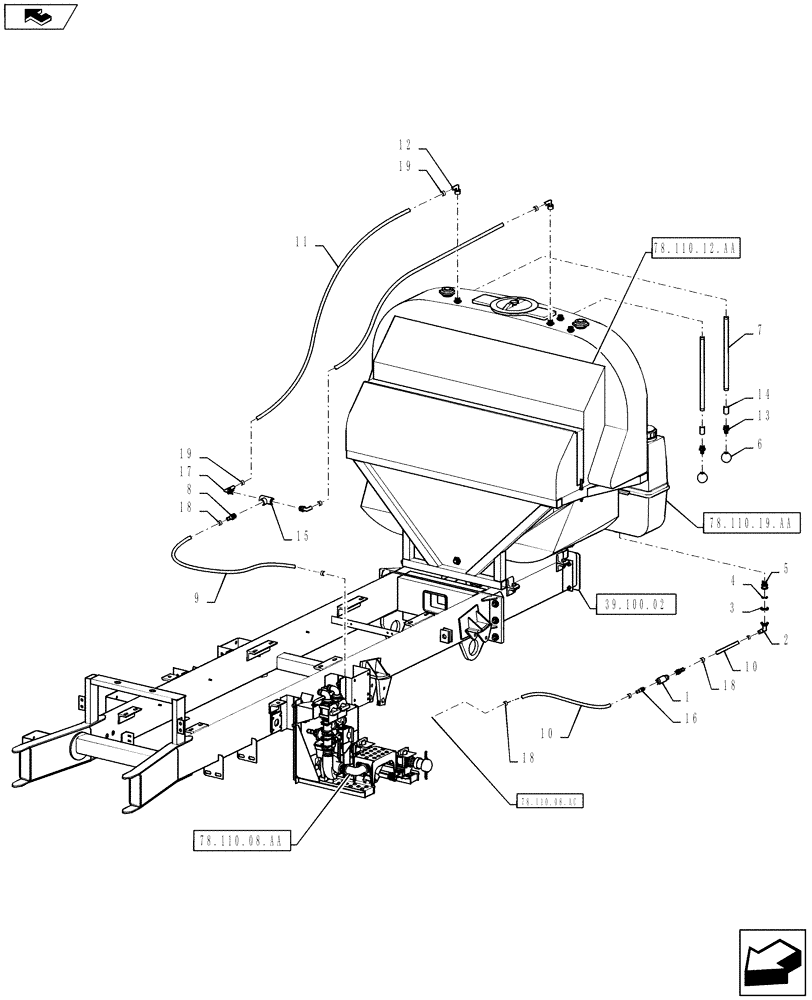

Схема запчастей Case IH 810 - (78.110.19.AB) - PRODUCT TANK RINSE, WET BOOM OPTION (78) - SPRAYING
8
4
18
19
7
10
12
2
3
13
15
11
14
78.110.08.ac
78.110.12.aa
78.110.19.aa
78.110.08.aa
6
39.100.02
10
17
home
5
18
16
19
18
9
1

Артикул

Название

Примечание

Количество

1

84347992

CHECK VALVE

1 1/4" NPT, 2 PSI

1шт.

2

BN303194

ELBOW,90 Degree Elbow, 1" Flange x 1" Hose Barb, Poly

1" Flange x 1" Hose Barb, Poly

1шт.

3

BN303203

CLAMP,1" Flange

1" Flange

1шт.

4

BN303205

GASKET

1” Flange, EPDM

1шт.

5

BN306903

MANIFOLD,1" Flange x 1" Male NPT, Poly

1" Manifold X 1" Male

1шт.

6

BN310058

NOZZLE

Tank Rinse

2шт.

7

BN310090

PIPE

3/4" x 22", Stainless Steel

2шт.

8

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

9

BN53479

HOSE,1.00" ID BULK

EPDM, Cut to Length of 92"

1шт.

10

BN53821

HOSE

EPDM 1" ID X 100"

2шт.

11

BN27905

HOSE,19.05mm ID x 304.8mm L

3/4" EPDM, Bulk, Cut to Length of 76"

2шт.

12

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

2шт.

13

BN73572

NIPPLE, LUBE

NIPPLE 3/4-1/2, POLY

2шт.

14

BN73574

COUPLING

3/4" Poly

2шт.

15

BN73629

TEE

1" Poly Pipe

1шт.

16

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

17

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

2шт.

18

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

19

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

Выбрано товаров: 19
