Запчасти Case IH 810 (78.110.14.DG) - REAR SPRAYBAR GROUP, 70, 2.5", RH (78) - SPRAYING

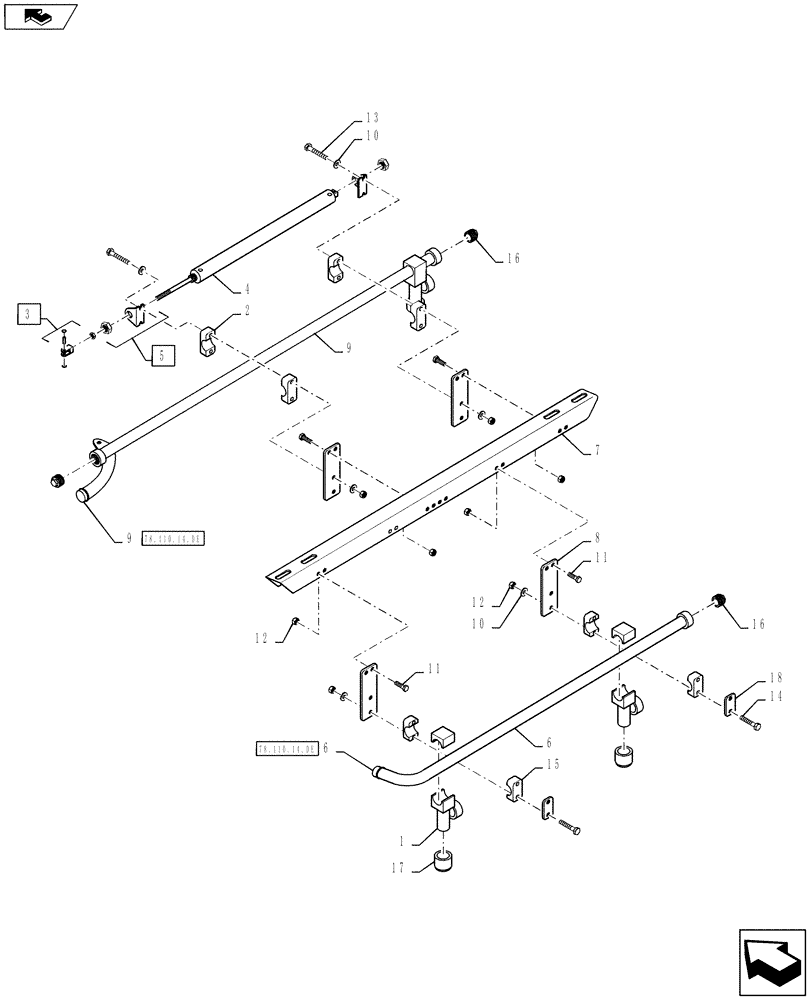

Схема запчастей Case IH 810 - (78.110.14.DG) - REAR SPRAYBAR GROUP, 70, 2.5", RH (78) - SPRAYING
11
home
16
5
15
1
16
4
9
11
6
12
3
18
10
9
8
12
14
7
6
2
17
13
10
78.110.14.de
78.110.14.de

Артикул

Название

Примечание

Количество

1

BN25237

NOZZLE

1 Way, 3/4" Pipe

3шт.

2

BN25984

CLAMP

Single, 3/4" Pipe

2шт.

3

BN300254

KIT

Clevis, .31 Rod

1шт.

4

BN300256

CYLINDER,Double Acting, 7.92mm Rod, 381mm Stroke

1.06 x 15, Air

1шт.

5

BN300257

REPAIR KIT

Foot Bracket, 1.06 Cylinder

2шт.

6

BN300300

BAR

Spraybar, RH, Rear

1шт.

7

BN315392

SUPPORT

Spraybar, Rear, 70'

1шт.

8

BN301631

BRACKET

Spraybar, Rear

4шт.

9

BN301632

BAR

Spray, Extend, RH

1шт.

10

BN50138

WASHER,1/4", SS

12шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

12

BN55359

LOCK NUT,1/4"-20, SS

16шт.

13

BN55371

BOLT

1/4"-20 X 2-1/2", Stainless Steel

4шт.

14

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

4шт.

15

BN65324

CLAMP

1" OD, Poly

2шт.

16

BN73553

PLUG

3/4" NPT, Poly

3шт.

17

BN74619

CAP

With Gasket, Black, Includes Ref 19

3шт.

18

BN311249

PLATE

Top, Single, Size 3

2шт.

19

BN74472

GASKET

EPDM, Not Shown

3шт.

Выбрано товаров: 19
