Запчасти Case IH 810 (78.110.14.CF) - REAR SPRAYBAR GROUP, 60, 3", LH (78) - SPRAYING

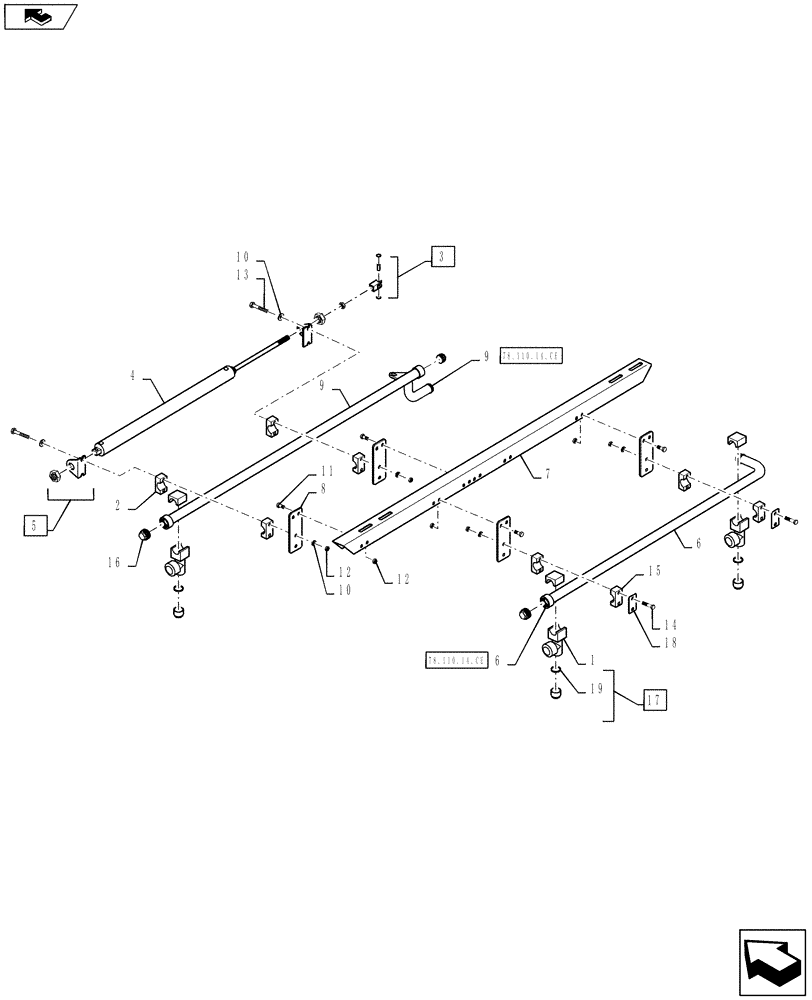

Схема запчастей Case IH 810 - (78.110.14.CF) - REAR SPRAYBAR GROUP, 60, 3", LH (78) - SPRAYING
16
12
17
4
2
10
9
home
6
6
78.110.14.ce
78.110.14.ce
14
15
5
12
3
9
19
18
7
13
8
10
11
1

Артикул

Название

Примечание

Количество

1

BN25237

NOZZLE

1 Way, 3/4" Pipe

3шт.

2

BN25984

CLAMP

Single, 3/4" Pipe

2шт.

3

BN300254

KIT

Clevis, .31 Rod

1шт.

4

BN300256

CYLINDER,Double Acting, 7.92mm Rod, 381mm Stroke

1.06 x 15, Air

1шт.

5

BN300257

REPAIR KIT

Foot Bracket, 1.06 Cylinder

2шт.

6

BN300301

BAR

Spraybar, LH, Rear

1шт.

7

BN301630

SUPPORT

Spraybar, Rear

1шт.

8

BN301631

BRACKET

Spraybar, Rear

4шт.

9

BN301633

BAR

Spraybar, LH Rear, Extended

1шт.

10

BN50138

WASHER,1/4", SS

12шт.

11

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

8шт.

12

BN55359

LOCK NUT,1/4"-20, SS

16шт.

13

BN55371

BOLT

1/4"-20 X 2-1/2", Stainless Steel

4шт.

14

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

4шт.

15

BN65324

CLAMP

1" OD, Poly

2шт.

16

BN73553

PLUG

3/4" NPT, Poly

3шт.

17

BN74619

CAP

With Gasket, Black, Includes Ref 19

3шт.

18

BN311249

PLATE

Top, Single, Size 3

2шт.

19

BN74472

GASKET

EPDM, Not Shown

3шт.

Выбрано товаров: 19
