(78.110.14.CD) - BOOM PLUMBING, 60, 3" TUBES, RH, OUTER

Запчасти Case IH 810 (78.110.14.CD) - BOOM PLUMBING, 60, 3" TUBES, RH, OUTER (78) - SPRAYING

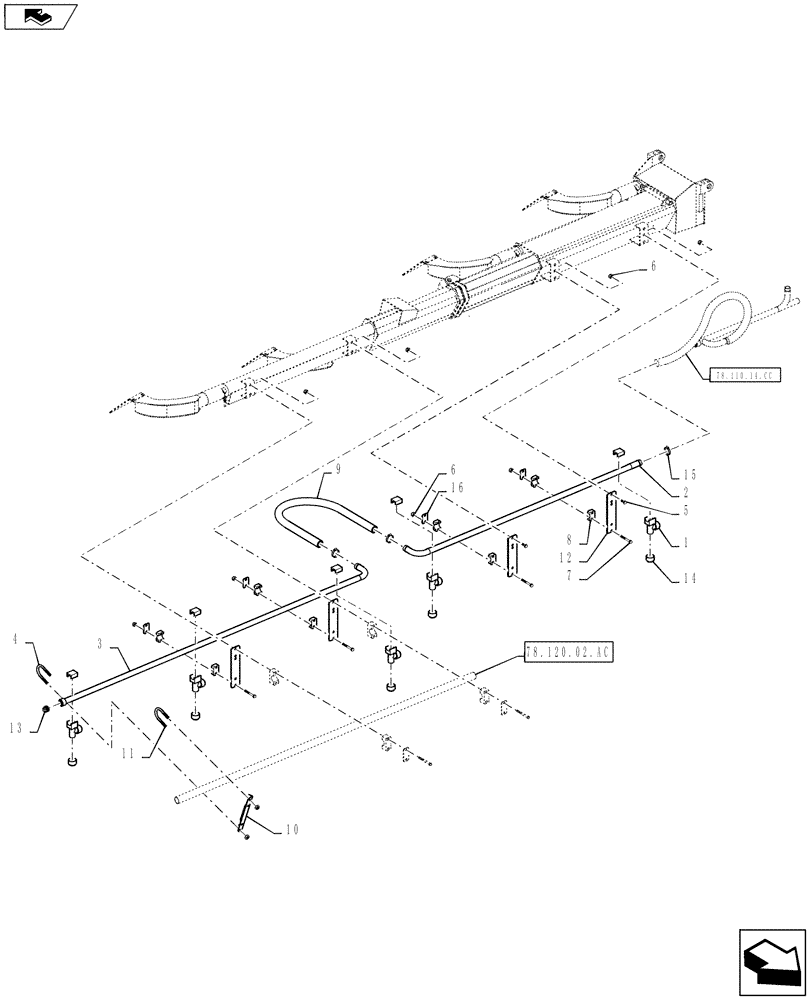

Схема запчастей Case IH 810 - (78.110.14.CD) - BOOM PLUMBING, 60, 3" TUBES, RH, OUTER (78) - SPRAYING
10
13
78.110.14.cc
78.120.02.ac
5
4
3
16
12
1
11
14
6
9
8
2
6
home
7
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN25237

NOZZLE

1 Way, 3/4" Pipe

5шт.

2

BN300292

BAR

Spraybar, Mid, RH

1шт.

3

BN300293

BAR

Spray, Outer, RH

1шт.

4

BN34458

U-BOLT

1/4" x 1.12 ID CR RD

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN55359

LOCK NUT,1/4"-20, SS

16шт.

7

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

8

BN65324

CLAMP

1" OD, Poly

4шт.

9

BN66858

HOSE

1" EPDM X 31.00"

1шт.

10

BN67983

SUPPORT

Outer Spraybar

1шт.

11

BN68011

U-BOLT

BOLT "U" 1/4-20 SS, 1" pipe

1шт.

12

BN68981

BRACKET

Spraybar

4шт.

13

BN73553

PLUG

3/4" NPT, Poly

1шт.

14

BN74619

CAP

With Gasket, Black

5шт.

15

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

16

BN311249

PLATE

Top, Single, Size 3

4шт.
