Запчасти Case IH 810 (78.110.14.BE) - BOOM PLUMBING, 60, 2.5" TUBES, REAR (78) - SPRAYING

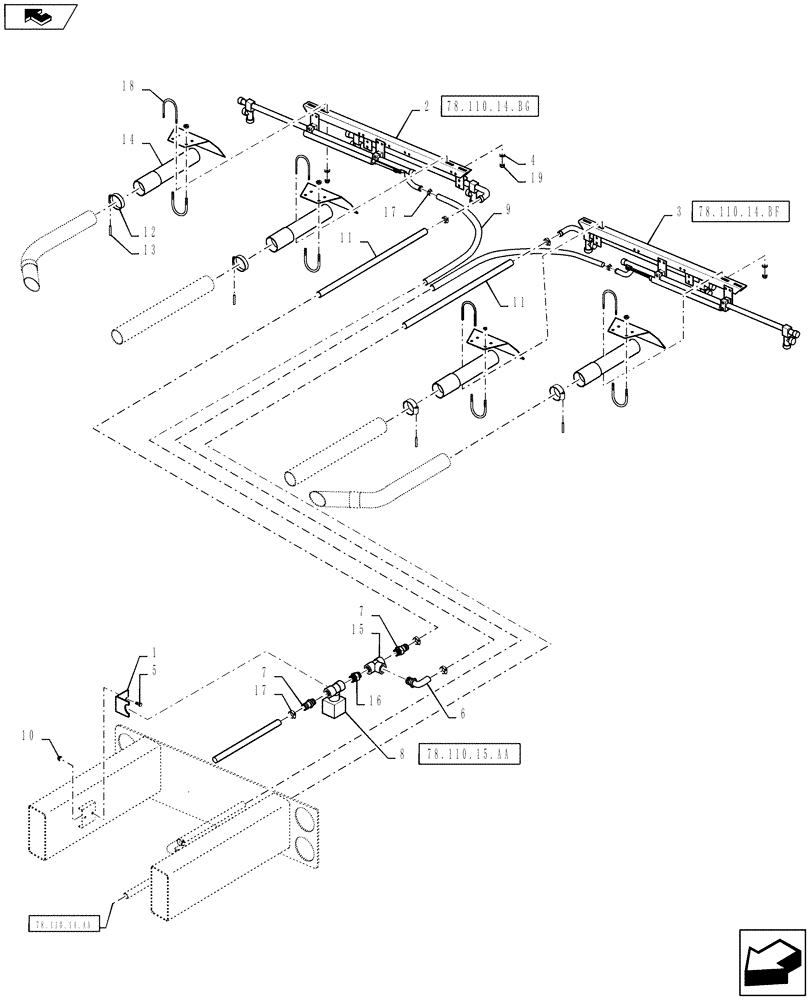

Схема запчастей Case IH 810 - (78.110.14.BE) - BOOM PLUMBING, 60, 2.5" TUBES, REAR (78) - SPRAYING
78.110.14.bf
3
78.110.15.aa
7
9
78.110.14.bg
11
4
8
home
17
6
2
1
17
14
7
19
18
11
5
78.110.14.aa
15
13
10
16
12

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

2шт.

2

BN301636

BAR

Rear Spraybar Group, Extend, RH

1шт.

See Fig 78.110.14.BG For Service Parts

1шт.

3

BN301637

BAR

Rear Spraybar Group, Extend, LH

1шт.

See Fig 78.110.14.BF For Service Parts

1шт.

4

BN50146

WASHER,3/8", Stainless

8шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

8

87389559

VALVE

Electric, 1" Ball, Section Control

2шт.

See Fig 78.110.15.AA For Service Parts

1шт.

9

BN53756

HOSE,42.00"

2шт.

10

BN55359

LOCK NUT,1/4"-20, SS

4шт.

11

BN66856

HOSE

1" EPDM X 25.00"

2шт.

12

BN15497

CLAMP,76.2mm - 82.55mm

3 1/4", Stainless Steel, T-Bolt

4шт.

13

BN68086

CAP

Round, Rubber, 1/4" ID X 1" Long

4шт.

14

BN65560

TUBE

Extension, 14-3/4"

4шт.

15

BN73629

TEE

1" Poly Pipe

2шт.

16

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

17

BN310447

HOSE CLAMP

#20, Stainless Steel

10шт.

18

BN68492

U-BOLT

3/8-16 UNC X 3, Stainless Steel

4шт.

19

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

Выбрано товаров: 22
