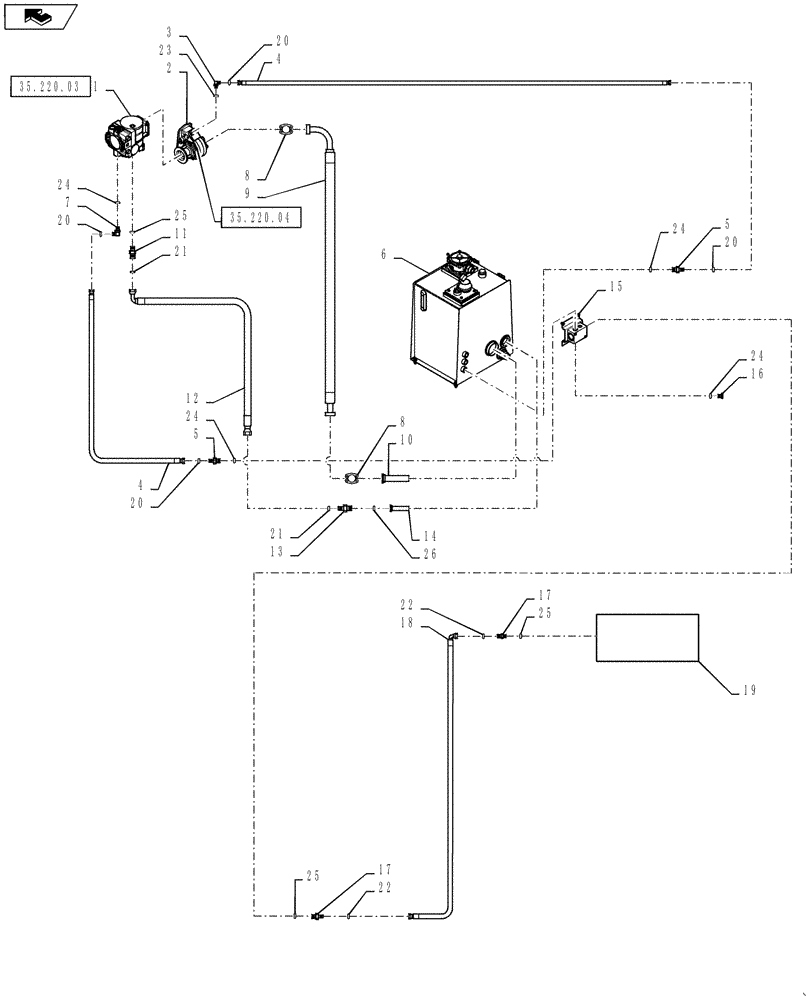

Запчасти Case IH 810 (35.220.08) - RETURN AND SUPPLY HYDRAULICS, 4 WHEELER (35) - HYDRAULIC SYSTEMS

1

BN309564

PUMP

75CC Hydrostat, 90 Series, 810 Drive Pump

1шт.

See Fig 35.220.03 For Service Parts

1шт.

2

86986504

PUMP

60CC, Pressure Compensated

1шт.

See Fig 35.220.04 For Service Parts

1шт.

3

BN53590

ELBOW

1-3/16" -12 ORFS x 7/8" -14 ORB

1шт.

4

BN311401

HOSE,47.00"

1-3/16" -12 ORFS Swivel x 1-3/16" -12 ORFS Swivel x 3/4" ID x 47" Long, Pump To Hydraulic Tank

2шт.

5

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB

2шт.

6

87270368

TANK

Hydraulic, 31 Gallon, Please See The Required Chassis Catalog For Parts Information

1шт.

7

BN302568

ELBOW

1-3/16"-12 ORFS x 1-1/16"-12 ORB

1шт.

8

BN303630

REPAIR KIT

Split Flange, 2", Code 61

2шт.

9

BN310352

HOSE

Code 61 Flange x Code 61 Flange Elbow x 2" ID x 47" Long, Gear Pump To Hydraulic Tank

1шт.

10

BN310209

FILTER STRAINER

48MB-32SF, 100

1шт.

11

BN302659

FITTING

1-11/16 -12 ORFS x 1-5/16 -12 ORB

1шт.

12

87266245

HOSE

1-11/16 -12 ORFS Swivel x 1-11/16 -12 ORFS Swivel Elbow x 1-1/4" ID x 42" Long, Hydrostatic Pump To Hydraulic Tank

1шт.

13

BN302660

FITTING

1-11/16-12 ORFS x 1-5/8-12 ORB

1шт.

14

BN303528

STRAINER ASSY.

32MB X 20 FB, 100 Mesh

1шт.

15

BN302877

MANIFOLD

Hydraulic Return, Chassis

1шт.

The Manifold Is Part Of The Chassis Hydraulic System. See Required Chassis Catalog For Further Parts Information

1шт.

16

BN54270

PLUG

1-1/16" -12 ORB

1шт.

17

BN57223

FITTING

1-7/16" -12 ORFS x 1-5/16" -12 ORB

2шт.

18

BN309824

HOSE

1-7/16-12 Female ORFS Swivel x 1-7/16-12 Female ORFS Swivel Elbow x 1" ID x 48-1/2" Long, Return Manifold To Chassis Return Manifold

1шт.

19

BN306910

MANIFOLD

Return

1шт.

See Fig 35.748.05 For Service Parts

1шт.

20

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

4шт.

21

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

2шт.

22

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

2шт.

23

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

1шт.

24

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

4шт.

25

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-5/16", ORB

3шт.

26

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

2шт.
