Запчасти Case IH 810 (78.110.14.BA) - BOOM PLUMBING, 60, 2.5" TUBES, LH, INNER (78) - SPRAYING

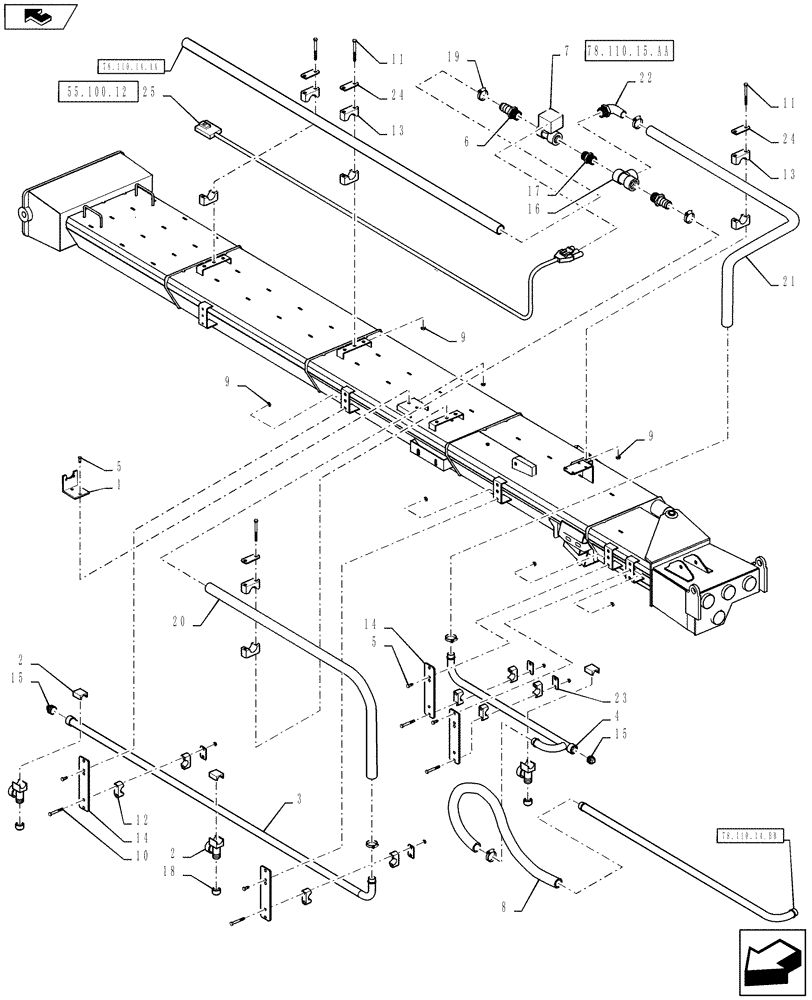

Схема запчастей Case IH 810 - (78.110.14.BA) - BOOM PLUMBING, 60, 2.5" TUBES, LH, INNER (78) - SPRAYING
20
13
10
24
15
2
home
13
3
23
1
11
7
2
12
8
78.110.14.bb
78.110.15.aa
11
18
25
5
17
21
24
78.110.14.aa
14
4
19
6
16
5
22
9
9
55.100.12
15
9
14

Артикул

Название

Примечание

Количество

1

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

2

BN25237

NOZZLE

1 Way, 3/4" Pipe

4шт.

3

BN303268

BAR

Spraybar, Inner

1шт.

4

BN300319

BAR

Spraybar, Inner, End, LH

1шт.

5

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

10шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

7

87389559

VALVE

Electric, 1" Ball, Section Control

1шт.

See Fig 78.110.15.AA For Service Parts

1шт.

8

BN53912

HOSE

1" ID EPDM x 38"

1шт.

9

BN55359

LOCK NUT,1/4"-20, SS

26шт.

10

BN55379

BOLT,1/4"-20 X 2-1/4", Stainless Steel

8шт.

11

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

12

BN65324

CLAMP

1" OD, Poly

4шт.

13

BN67494

CLAMP

Single, 1.5" DIA

4шт.

14

BN68981

BRACKET

Spraybar

4шт.

15

BN73553

PLUG

3/4" NPT, Poly

2шт.

16

BN73629

TEE

1" Poly Pipe

1шт.

17

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

18

BN74619

CAP

With Gasket, Black

4шт.

19

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

20

BN53756

HOSE,42.00"

1шт.

21

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

22

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

23

BN311249

PLATE

Top, Single, Size 3

4шт.

24

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

25

BN313987

WIRE HARNESS

Ball Valve Extension

1шт.

See Fig 55.100.12 For Service Parts

1шт.

Выбрано товаров: 27
