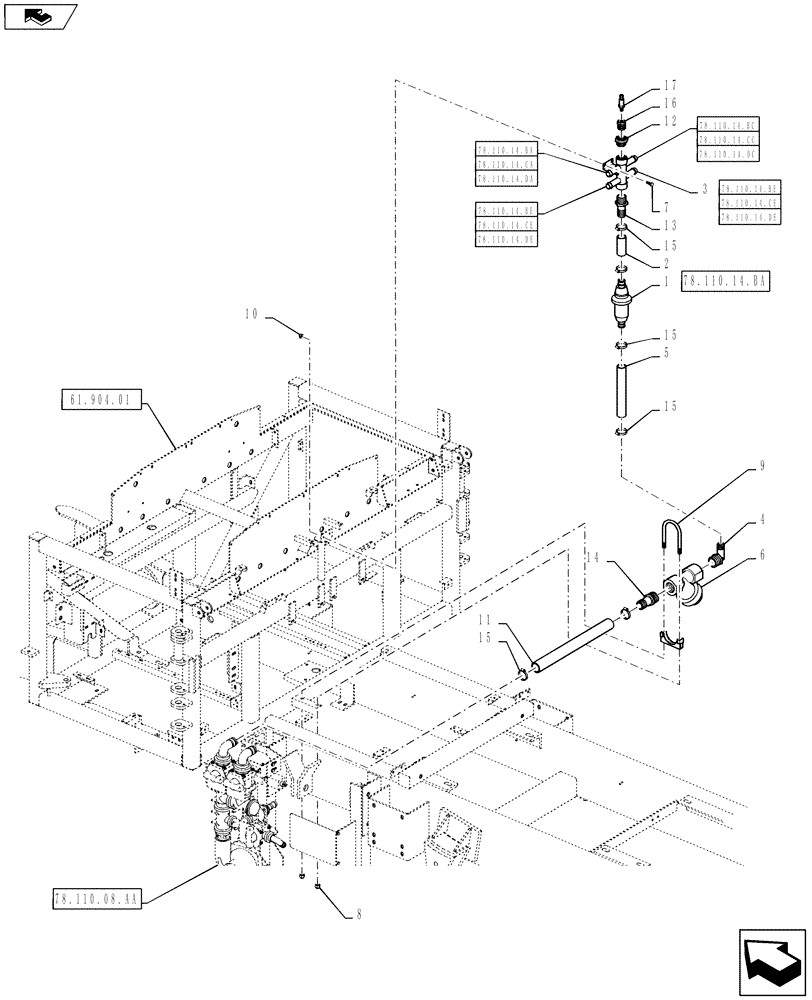

Запчасти Case IH 810 (78.110.14.AA) - WET BOOM CENTRAL MANIFOLD, 60’/70’ (78) - SPRAYING

1

87377607

HYDROMETER

Flow Group, With Deutsch Connector

1шт.

See Fig 78.110.14.AB For Service Parts

1шт.

2

BN24645

HOSE

1-1/4 EPDM X 3-1/2

1шт.

3

BN304699

MANIFOLD

Wet Boom Liquid

1шт.

4

BN308040

FITTING,1-1/2" Male Thread x 1-1/4" 90 Degree Hose Barb

1-1/2" NPT x 1-1/4" Hose Barb, Poly

1шт.

5

BN29563

HOSE

Bulk 1.25" EPDM, Discharge, Cut to Length of 10"

1шт.

6

BN309963

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

1-1/2" Flange, 50 Mesh, Y Style, Poly

1шт.

See Fig 78.110.14.AD For Service Parts

1шт.

7

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

2шт.

8

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

9

BN53399

PIPE CLAMP

3" Heavy Duty

1шт.

10

BN55359

LOCK NUT,1/4"-20, SS

2шт.

11

BN67239

HOSE

1-1/2" x 20-1/2" EPDM

1шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

13

BN73660

PIPE FITTING,1-1/4" NPT Male x 1-1/4" Barbed

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

14

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

15

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

6шт.

16

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

17

84201517

TRANSDUCER

Boom Pressure Sensor

1шт.
