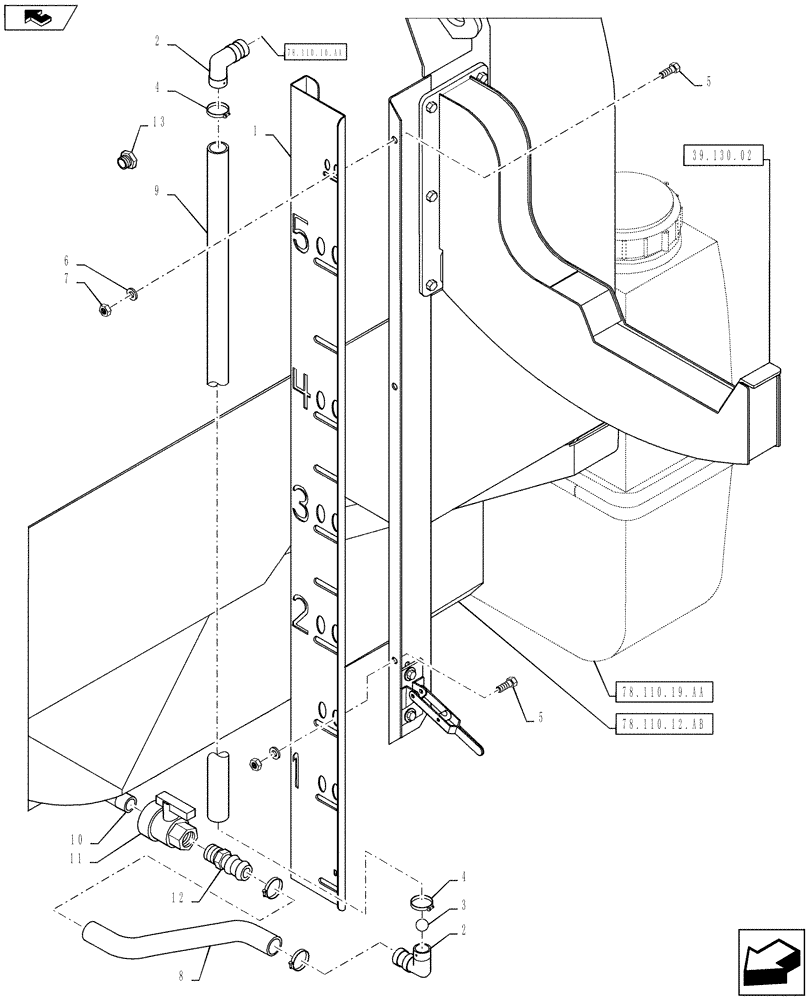

Запчасти Case IH 810 (78.110.12.BA) - PRODUCT TANK SIGHT GAUGE (78) - SPRAYING

1

343745A1

PLATE

Sight Gauge, Liquid Product Tank

1шт.

2

342685A1

END FITTING

Hose Barb, 1" 90 Degree Elbow With Pin

2шт.

3

BN326104

BALL

3/4" Poly, Floating Level

1шт.

4

BN310446

HOSE CLAMP

#12, Stainless Steel

4шт.

5

BN50254

BOLT,3/8"-16 x 1", Stainless

3шт.

6

BN50146

WASHER,3/8", Stainless

3шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

3шт.

8

BN54256

HOSE

Bulk, 1.0" ID Clear Vinyl, Cut to Length of 30"

1шт.

9

343746A1

HOSE

1" x 57" Clear

1шт.

10

87271149

NIPPLE,3/4" x 6" Poly Nipple

3/4" Short Pipe, Poly

1шт.

11

BN324588

VALVE

3/4" Ball Poly 2 Way, Full, Poly

1шт.

12

BN73569

FITTING

3/4" NPT X 1" Hose Barb, Poly

1шт.

13

BN73553

PLUG

3/4" NPT, Poly, Used To Plug Old Sight Gage Port On Product Tank

1шт.
