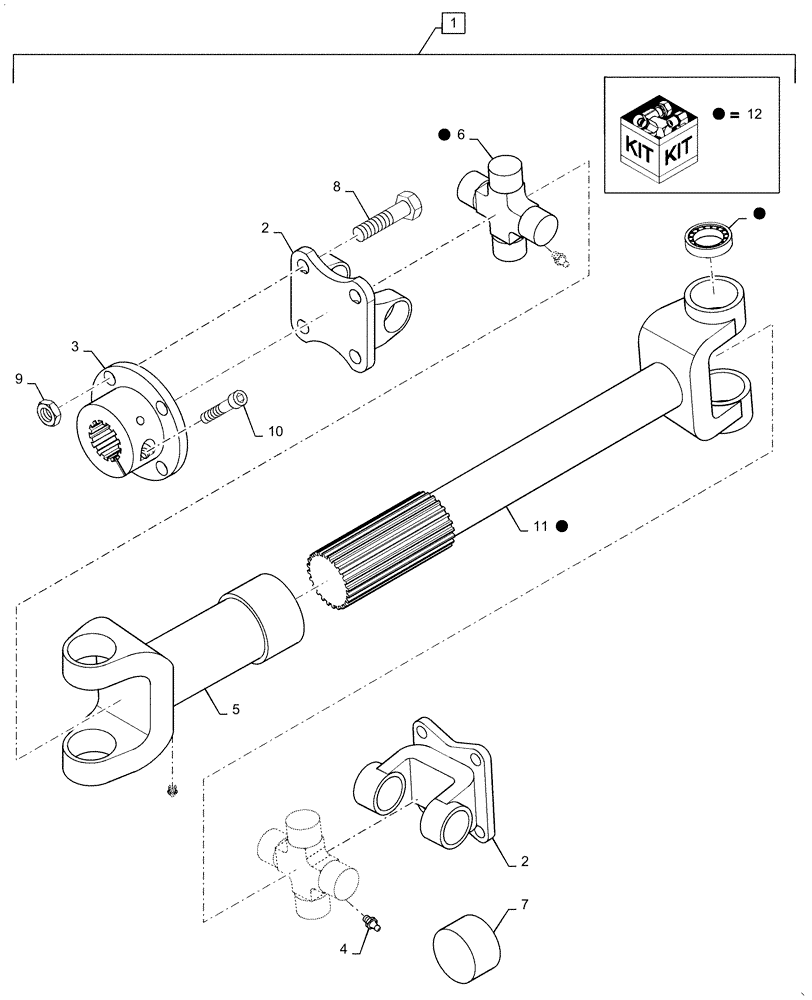

Запчасти Case IH 810 (35.220.07) - HYDRAULIC DRIVELINE, 3 WHEELER (35) - HYDRAULIC SYSTEMS

1

87541445

DRIVEN SHAFT

Hydrostatic Pump, Complete, Includes Ref 2-12

1шт.

2

BN306563

FLANGE

Yoke

2шт.

3

BN313375

FLANGE

Flange

1шт.

4

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

5

BN313372

YOKE

Slip

1шт.

6

R2713

BEARING ASSY

Cross

1шт.

7

84192220

DUST CAP

1шт.

8

86050212

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

4шт.

9

86637736

NUT,7/16"-14, GB

4шт.

10

280257

HEX SOC SCREW,3/8" - 24 x 1 1/4"

CS HSH P .38-24X1.25

1шт.

11

84192722

DRIVEN SHAFT

1шт.

12

87559500

SHAFT

Driveline With Yoke

1шт.
