Запчасти Case IH 810 (78.110.12.AB) - PRODUCT TANK ASSEMBLY, 500 GALLON CAPACITY (78) - SPRAYING

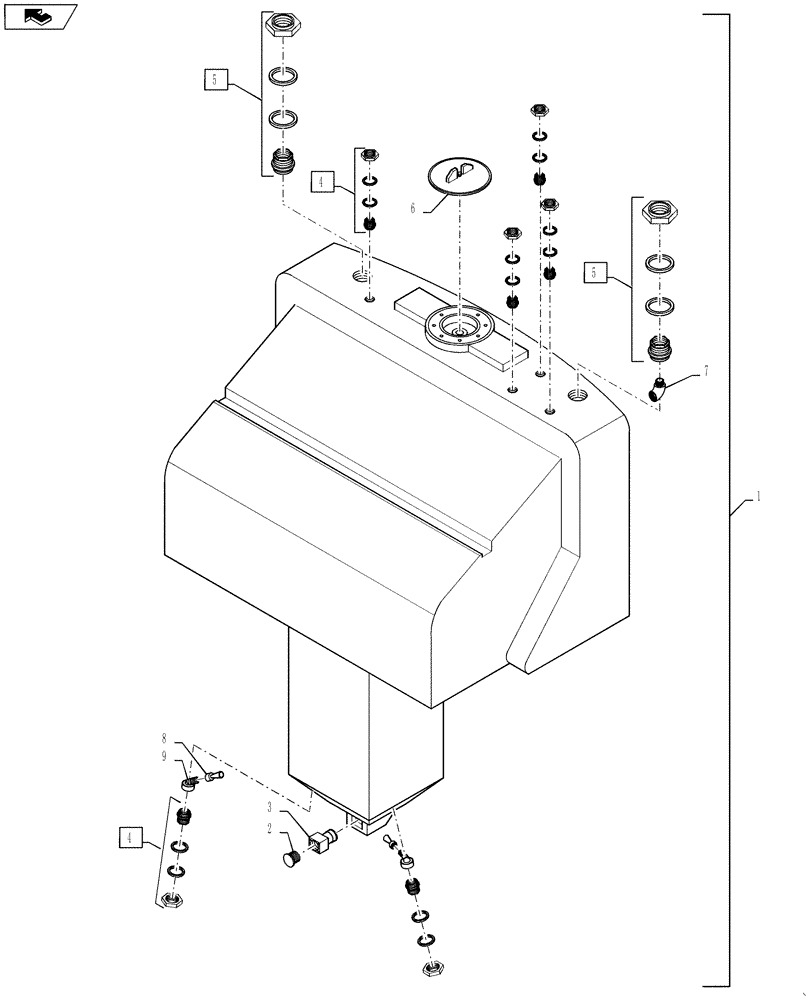

Схема запчастей Case IH 810 - (78.110.12.AB) - PRODUCT TANK ASSEMBLY, 500 GALLON CAPACITY (78) - SPRAYING
5
1
8
5
2
home
7
6
3
4
4
9

Артикул

Название

Примечание

Количество

1

BN309281

TANK

Product, 500 Gallon, Gray, Complete, Includes Ref 2 - 9

1шт.

2

BN309799

COVER

Vent, Anti-Vortex, 2"

1шт.

3

BN309800

FLANGE

Bottom Drain Bolt

1шт.

4

BN73563

BULKHEAD

3/4" FPT, Poly

8шт.

5

BN73733

FITTING

Bulkhead, 1-1/2" FPT, Poly

2шт.

6

BN98288

COVER

Lid, 10", Product Tank

1шт.

7

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

2шт.

8

BN310059

NOZZLE

Sparge, 9/32"

2шт.

9

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

45 Deg, 3/4" NPT x 3/4" NPT, Poly

2шт.

Выбрано товаров: 9
