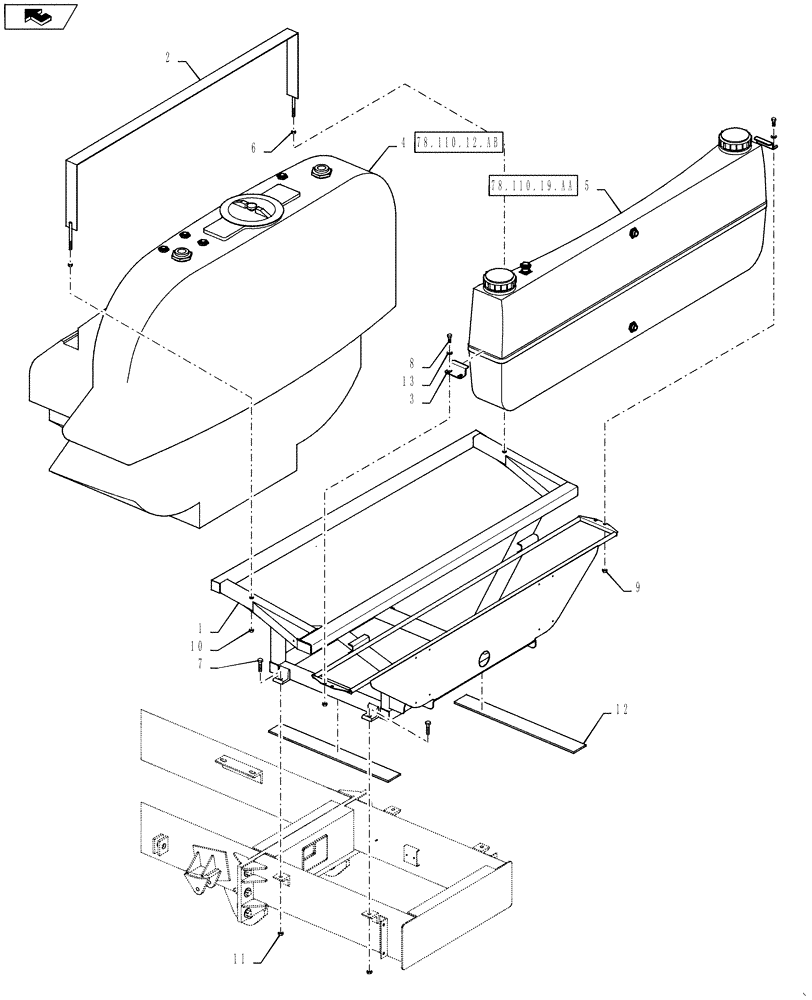

Запчасти Case IH 810 (78.110.12.AA) - PRODUCT AND RINSE TANK MOUNTING (78) - SPRAYING

1

87267703

SUPPORT

Cradle, Product And Rinse Tank

1шт.

2

BN303429

STRAP

Tank

1шт.

3

86986604

PLATE

Tank Hold Down

2шт.

4

BN309281

TANK

Product, 500 Gallon, Gray

1шт.

See Fig 78.110.12.AB For Service Parts

1шт.

5

BN309282

TANK

Rinse, 75 Gallon, Gray

1шт.

See Fig 78.110.19.AA For Service Parts

1шт.

6

BN50071

NUT,1/2"-13, Stainless

2шт.

7

87342852

BOLT

5/8-11 x 2-1/2", Gr 5, DOR

4шт.

8

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

9

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

10

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

2шт.

11

87310322

NUT

5/8-11, Gr 8, DOR

4шт.

12

BN313866

BELT,4.00" W x 33.00" L

2шт.

13

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

4шт.
