Запчасти Case IH 810 (78.110.11.AA) - SPARGE GROUP (78) - SPRAYING

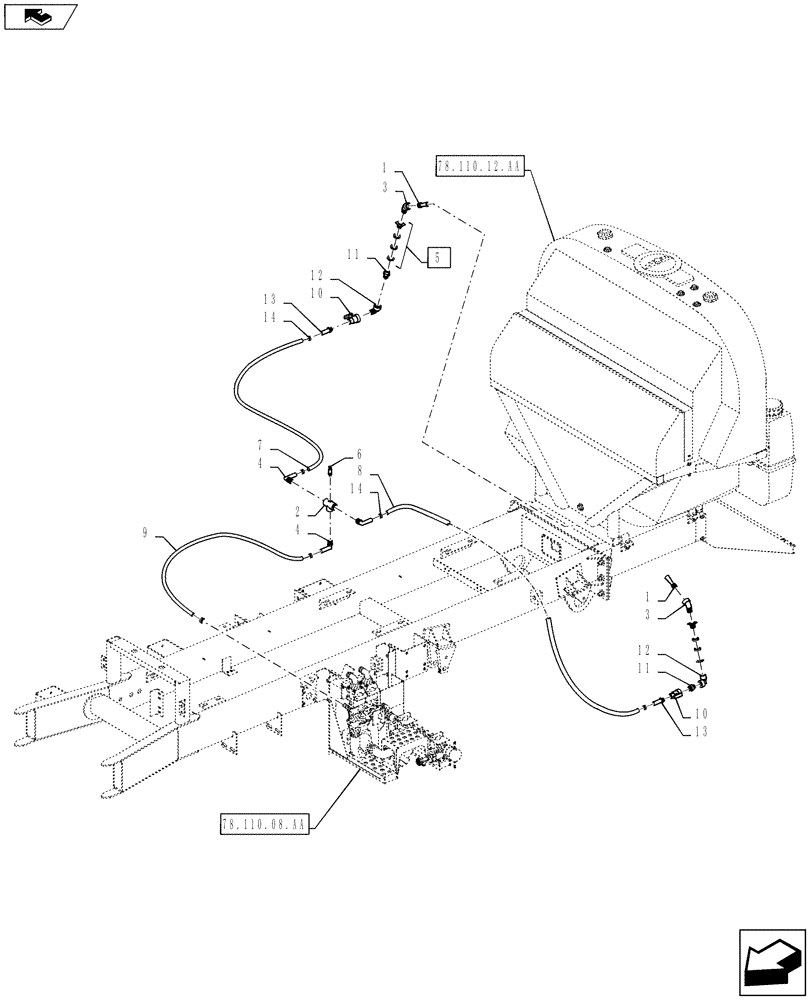

Схема запчастей Case IH 810 - (78.110.11.AA) - SPARGE GROUP (78) - SPRAYING
4
9
4
10
7
78.110.12.aa
78.110.08.aa
11
6
14
5
14
12
1
3
3
8
12
11
1
2
13
13
10
home

Артикул

Название

Примечание

Количество

1

BN310059

NOZZLE

Sparge, 9/32"

2шт.

2

BN310060

TEE

1" Poly, With 1/4" NPT Port

1шт.

3

BN310061

ELBOW,3/4" 45 Degree Poly Street Elbow

45 Deg, 3/4" NPT x 3/4" NPT, Poly

2шт.

4

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

5

BN73563

BULKHEAD

3/4" FPT, Poly

2шт.

6

84201517

TRANSDUCER

Sparge Pressure Transducer

1шт.

7

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

1шт.

8

BN53756

HOSE,42.00"

1шт.

9

BN53479

HOSE,1.00" ID BULK

Cut to Length of 92"

1шт.

10

BN324588

VALVE

Ball 3/4" SU Poly

2шт.

11

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

12

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

13

BN73569

FITTING

3/4" NPT X 1" Hose Barb, Poly

2шт.

14

BN310447

HOSE CLAMP

#20, Stainless Steel

6шт.

Выбрано товаров: 14
