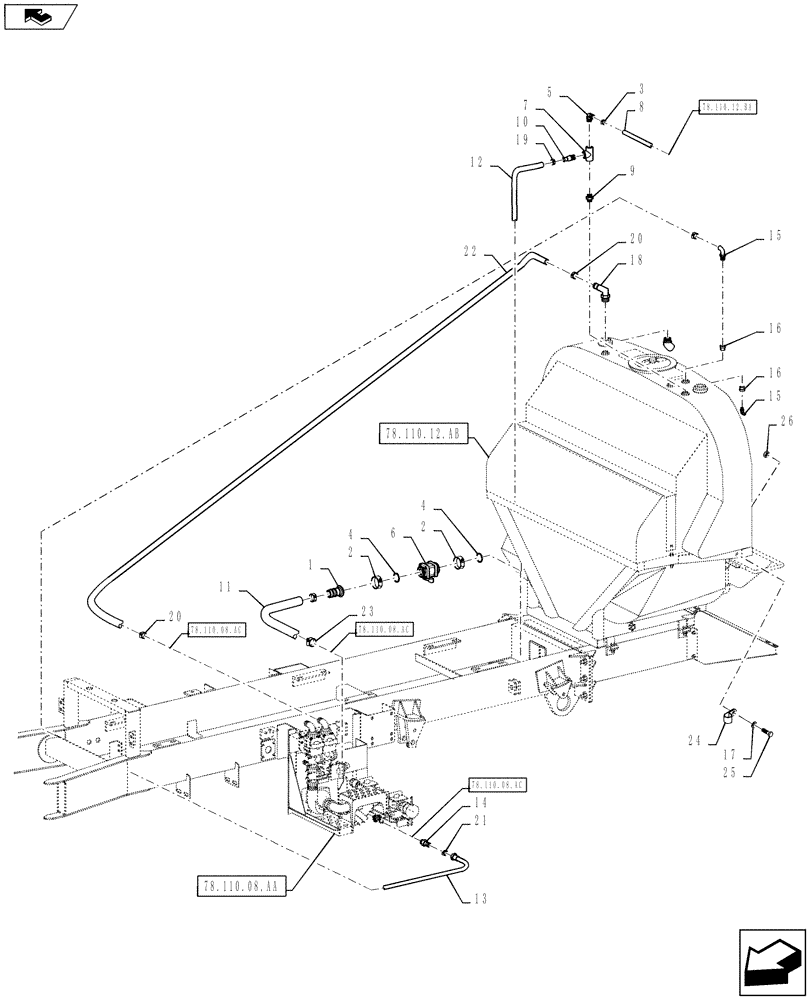

Запчасти Case IH 810 (78.110.10.AA) - MAIN PLUMBING, PRODUCT TANK FILL (78) - SPRAYING

1

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

2

BN303199

CLAMP,2" Flange

2" Standard Flange

2шт.

3

BN310447

HOSE CLAMP

#20, Stainless Steel

1шт.

4

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

5

134271C2

ELBOW,ELBOW, 90

3/4" NPT x 1" Hose Barb, Poly

1шт.

6

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

Ball, 2" Flange, With Handle

1шт.

7

BN73560

TEE

3/4" NPT, Poly

1шт.

8

BN324795

HOSE,1.00" ID x 52.00"

Clear

1шт.

9

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

10

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

11

BN53825

HOSE

2" ID x 10', Suction

1шт.

12

BN53931

HOSE,130.00"

1шт.

13

BN67333

HOSE

1/4" EPDM X 204"

1шт.

14

BN72040

FITTING,1/8" MPT x 1/4" HB

1/8" NPT x 1/4" Hose Barb

1шт.

15

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

2шт.

16

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

2шт.

17

BN50142

WASHER,5/16", Stainless Steel

1шт.

18

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

19

BN310446

HOSE CLAMP

#12, Stainless Steel

1шт.

20

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

21

BN310450

HOSE CLAMP

#3, Stainless Steel

2шт.

22

BN315701

HOSE

HOSE, 1.5 X 214" EPDM

1шт.

23

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

2шт.

24

515-23508

CLAMP,2", Insul, 3/8" Bolt

1шт.

25

BN50476

BOLT,5/16"-18 x 0.75", Stainless

1шт.

26

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.
