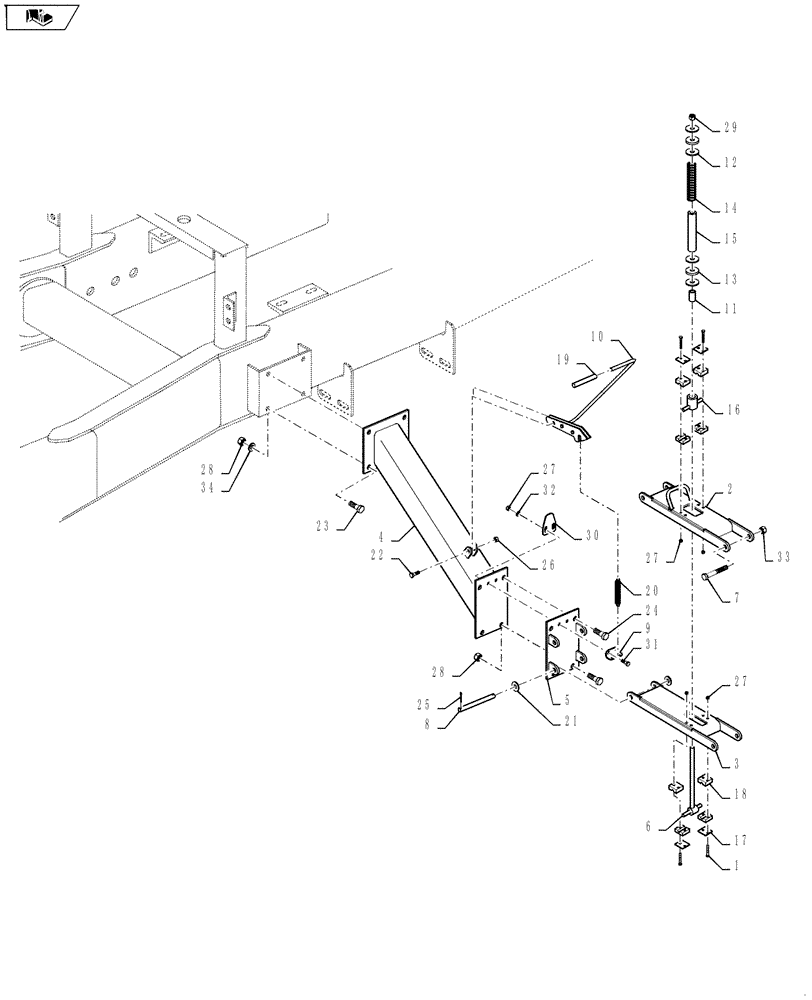

Запчасти Case IH 810 (78.110.09.AB) - INDUCTOR MOUNT (78) - SPRAYING

1

BN300395

BOLT,1/4"-20 x 1-3/4", Stainless Steel

8шт.

2

BN313552

LINK

Inductor, Upper

1шт.

3

BN313553

LINK

Inductor, Lower

1шт.

4

BN312964

BRACKET, SUPPORTING

Inductor

1шт.

5

BN312965

MOUNTING PLATE

Inductor Links

1шт.

6

BN311873

PIVOT

Rod, Spring

1шт.

7

BN301360

BOLT

M12-1.75 x 120, Stainless Steel

2шт.

8

BN311877

PIN

Lower Pivot

2шт.

9

BN312966

BRACKET

Latch Spring

1шт.

10

BN313667

LATCH

Chemical Tank

1шт.

11

BN311880

PIVOT

Bushing, Spring

1шт.

12

BN311881

WASHER

1.63 X 10 GA

4шт.

13

BN311882

WASHER

1.63 X .25 Rubber

2шт.

14

BN311883

SPRING

1.55 X 9.75 X .207, Stainless Steel

1шт.

15

BN311884

BUSHING

Inductor Stop

1шт.

16

BN313394

PIVOT

Block, Shaft

1шт.

17

BN311886

PLATE

Top, Single, Size 1

4шт.

18

BN307078

CLAMP

Pair, 3/8" Tube

4шт.

19

BN311888

CAP

Round, .375 ID X 3, BLK

1шт.

20

BN311889

SPRING

.50 X 2.00 X .067, Stainless Steel

2шт.

21

BN50595

WASHER,1/2", Stainless

4шт.

22

BN50260

BOLT,3/8"-16 x 1-1/2", Stainless Steel

1шт.

23

87310191

BOLT,1/2"-13 x 1-1/2", G5, DOR

4шт.

24

87342793

BOLT

1/2"-13 x 1-1/4", G5, DOR

4шт.

25

BN50604

COTTER PIN

1/8 X 1-1/2

4шт.

26

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

1шт.

27

BN55359

LOCK NUT,1/4"-20, SS

10шт.

28

87310321

NUT,Prevailing Torque, 1/2"-13, GB, DOR

8шт.

29

BN55363

LOCK NUT,1/2"-13, Nylon, Stainless

1шт.

30

BN312967

LATCH

Stop

1шт.

31

BN50688

BOLT,Hex, 1/4" - 20 x 1-1/4", SST

1/4"-20 X 1-1/4", Stainless Steel

2шт.

32

BN50138

WASHER,1/4", SS

2шт.

33

BN313561

LOCK NUT

M12-1.75, Nylon, Stainless Steel

2шт.

34

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

4шт.
